5-Axis CNC Plasma Bevel Cutting Machine
CNC Plasma Bevel Cutting Machine for industrial buyers, delivering automated metal profiling, angled edge preparation, and efficient weld-ready cuts for heavy fabrication.
- 5-Axis Bevel Cutting: Coordinates multi-axis torch movement to produce angled edges and weld-preparation profiles.
- Plasma and Flame Cutting Options: Supports configurable cutting processes according to material type, thickness, and production requirements.
- CNC Automation: Combines programmed cutting paths, servo-driven motion, and automatic torch height control to improve process consistency.
- Integrated Flat and Bevel Cutting: Handles standard profile cutting and bevel preparation within a configured production system.
- Customizable Working Area: Supports different machine sizes and cutting requirements for plate fabrication and heavy industrial manufacturing.
5 Aixs CNC metal bevel plamsa cutting machine description

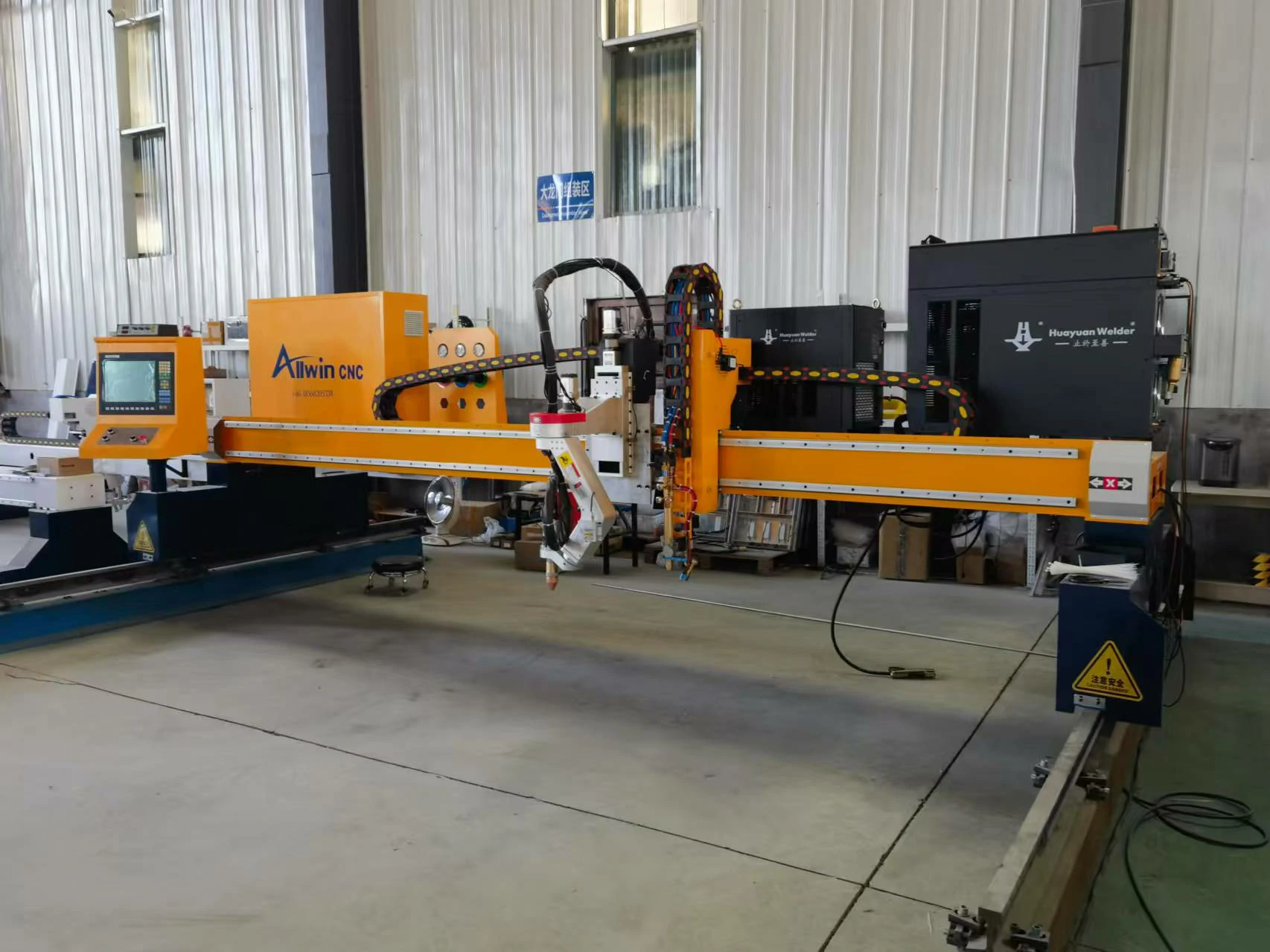

CNC Plasma Bevel Cutting Machine for Weld Preparation
The CNC Plasma Bevel Cutting Machine from FWINCNC is designed for metal fabrication companies, steel structure manufacturers, shipbuilding contractors, and industrial equipment producers that require automated cutting and edge preparation. By combining CNC-controlled plasma cutting with multi-axis bevel movement, the machine can cut metal profiles and create angled edges for subsequent welding and assembly.
For manufacturers processing thick steel plates and structural components, cutting the required bevel directly during the CNC operation can reduce the need for separate edge-preparation steps. This helps simplify production routing, reduce repeated workpiece handling, and improve consistency across programmed parts. The actual benefits depend on the material, cutting thickness, bevel geometry, machine configuration, and production workflow.
How a CNC Plasma Bevel Cutting Machine Works
A conventional CNC plasma cutting machine follows a programmed cutting path to produce straight or contoured cuts. A bevel cutting system adds controlled torch rotation and coordinated axis movement, allowing the cutting head to approach the workpiece at a selected angle.

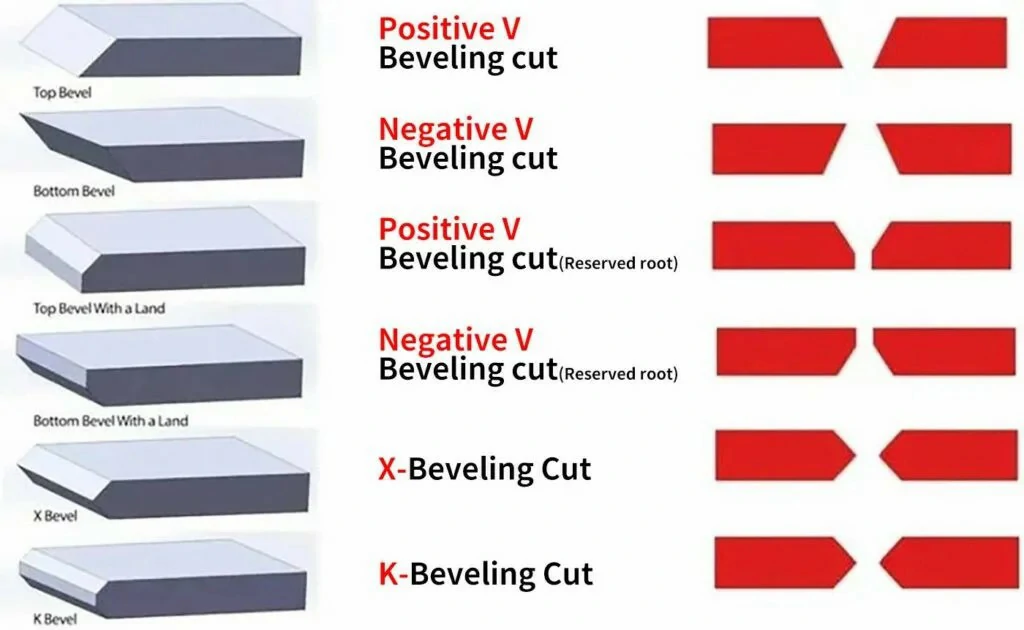

This movement enables the machine to produce edge preparations such as V-type and other configured bevel profiles. These profiles are frequently required before welding plates, structural members, and fabricated assemblies. The exact bevel types available depend on the installed cutting head, CNC controller, software, and machine configuration.
By integrating cutting and bevel preparation into a programmed operation, manufacturers can reduce reliance on separate manual beveling equipment for compatible parts. Operators can prepare cutting programs in advance, position the workpiece, and use CNC motion control to repeat the specified cutting path.
Key Advantages of CNC Plasma Bevel Cutting
1. Automated Multi-Axis Bevel Processing

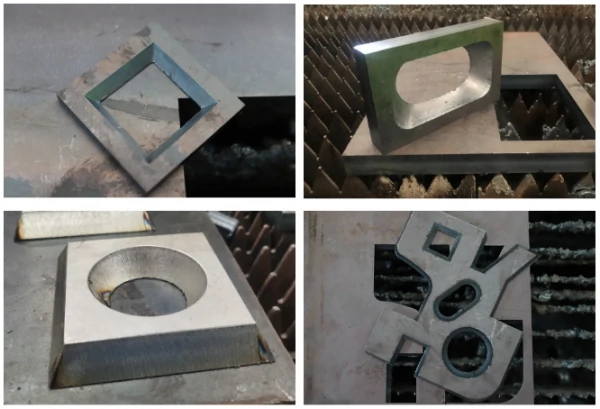

The multi-axis system coordinates torch movement to achieve angled cutting paths that are not possible with a basic vertical-cutting setup alone. Depending on the configured bevel head, it can support selected V-groove, Y-groove, chamfering, and other edge-preparation requirements.
This capability is particularly valuable when parts must be prepared for welding at consistent angles. Instead of relying entirely on manual grinding or a separate beveling station, manufacturers can incorporate suitable bevel profiles into the original cutting program.
2. Reduced Secondary Processing
Manual bevel preparation can involve additional labor, repeated measurements, and extra material handling. By cutting compatible bevels directly, a CNC plasma bevel cutter can reduce the number of separate operations needed before assembly and welding.
For production teams, fewer handling steps can simplify scheduling and improve workflow organization. However, some components may still require grinding, slag removal, dimensional inspection, or additional finishing to meet the specified weld preparation standard.
3. CNC Control and Repeatable Motion
A CNC control system executes programmed cutting paths and coordinates the machine’s movement. When paired with appropriate servo drives, motion components, and torch height control, the system helps maintain a more consistent cutting process across repeated parts.
The machine’s controller and software should be selected according to the intended bevel geometry, part complexity, nesting requirements, and operator workflow. Buyers should confirm the supported file formats, post-processing requirements, and software functions before ordering.
4. Plasma and Flame Cutting Configuration Options
FWINCNC’s related bevel cutting configurations include plasma and oxy-fuel cutting options. Plasma cutting is commonly used for electrically conductive metals, including carbon steel, stainless steel, and aluminum, subject to the selected power source and process requirements. Oxy-fuel cutting is primarily used for suitable ferrous materials, especially carbon steel.
The appropriate cutting method depends on material composition, thickness, edge quality, productivity targets, and operating cost. Not every configuration supports every process, so the required cutting method and power source should be specified when requesting a quotation.

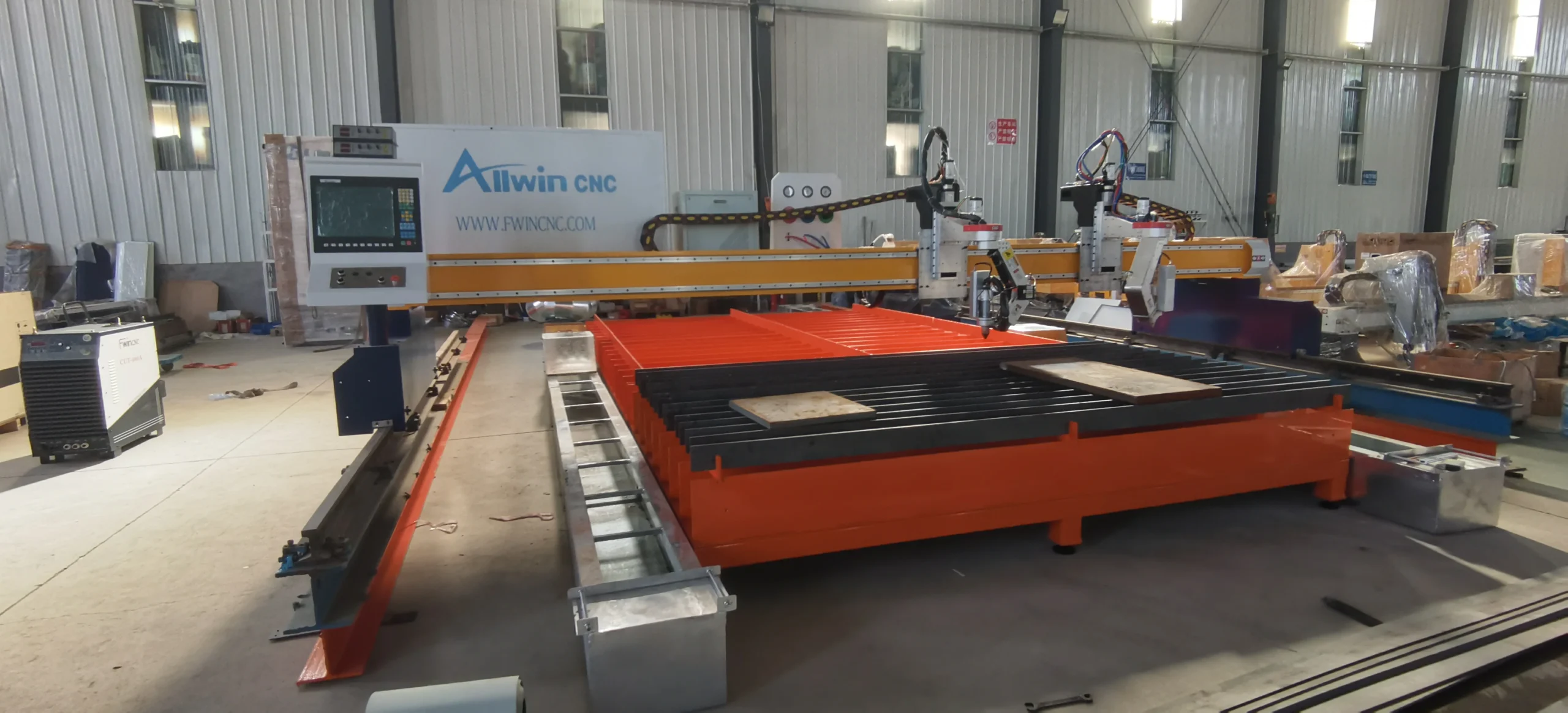

5. Customizable Working Area
Fabrication businesses handle workpieces of different sizes, from medium-format plates to large structural components. A configurable machine working area allows buyers to match the cutting system to their production dimensions, available factory space, and material-handling arrangements.
Before selecting a machine size, consider the maximum plate dimensions, material loading method, cutting-table arrangement, required travel, and future production plans. These factors help establish a practical configuration rather than choosing a machine based on working area alone.
| Parameter | Specification |
|---|---|
| Product Name | CNC Plasma Bevel Cutting Machine |
| Machine Type | 5-Axis CNC Bevel Cutting System |
| Cutting Methods | Plasma; Oxy-Fuel Optional |
| Bevel Cutting | Multi-Axis Torch Rotation |
| Bevel Profiles | V-Groove, Y-Groove, Chamfering; confirm configuration |
| Cutting Materials | Carbon Steel, Stainless Steel, Aluminum and Other Compatible Metals |
| CNC Controller | Starfire Bevel Cutting Controller; model to confirm |
| Display | 15-Inch LCD Screen on listed configurations |
| Drive System | Servo Motor Drive |
| Servo Motor Brand | Panasonic on listed configurations |
| Torch Height Control | Automatic THC on listed configurations |
| Software | Flat Cutting and Bevel Cutting Software |
| Plasma Power Source | 120A / 200A / 300A / 400A options listed; confirm model compatibility |
| Effective Working Area | Customizable; common configurations include 2.5 × 6 m and 2 × 4 m |
| Bevel Angle | Configuration-dependent; confirm the required angle range |
| Bevel Accuracy | ±0.5° listed for certain configurations; confirm model-specific performance |
| Machine Input Voltage | 220V single-phase listed for CNC control system; full machine power requirements to confirm |
| Transmission | Rack and Linear Guide System on listed configurations |
| Cutting Torch Cooling | Air Cooling or Water Cooling, depending on configuration |
| Customization | Working Area, Cutting Process and Selected Components |
5 Aixs Plasma CNC Beveling Metal Cutting Machine Applications
Shipbuilding and Marine Engineering
Used for preparing compatible steel plates and structural components that require angled edges before welding. CNC bevel cutting can help standardize edge preparation across repeated parts used in hull structures, support frames, and fabricated marine assemblies.
Steel Structure and Bridge Construction
Suitable for structural steel manufacturers processing plates, brackets, support members, and welded assemblies. Integrated bevel cutting can reduce separate edge-preparation steps for compatible components and help organize high-volume fabrication workflows.
Heavy Machinery Manufacturing
Applicable to selected machine frames, equipment bases, support structures, and heavy-duty metal assemblies. CNC-controlled beveling helps produce specified edge geometries before welding, provided the machine configuration supports the required part dimensions and material thickness.
Pressure Vessel and Industrial Equipment Fabrication
Can be evaluated for compatible plate components used in tanks, vessels, and industrial equipment structures. Buyers must confirm the required bevel geometry, material specifications, cutting quality, and applicable fabrication standards. Critical pressure-containing components require the appropriate inspection and qualified manufacturing procedures.
Energy and Power Infrastructure
Suitable for selected structural steel parts, support frames, equipment housings, and fabricated components used in energy infrastructure projects. The combination of CNC profiling and bevel preparation can simplify production where repeatable edge geometry is required.
General Metal Fabrication Workshops
Useful for job shops handling custom metal parts and mixed production orders. Configurable working dimensions and cutting processes allow the machine to be matched to different fabrication requirements, while CNC programming supports repeatable processing of compatible designs.
FWINCNC supplies CNC metal cutting equipment for international industrial customers. When evaluating this bevel cutting machine, buyers can discuss working dimensions, plate thickness, required bevel profiles, cutting processes, control systems, and material-handling needs with the sales team.
Providing engineering drawings, sample part dimensions, material grades, and target production volume helps the team identify a suitable configuration and clarify any technical limitations before quotation. It also allows the purchasing department to compare machine options against the actual requirements of the fabrication process.
