CNC Plasma Cutting Table | Portable Dual-Use Oxy-Gas Cutter
The Fwincnc cnc plasma cutting table provides a highly versatile, compact metal profiling solution designed for both workshop and light industrial environments. Built with a standard cutting area of $1500\text{mm} \times 3000\text{mm}$ (1530/1540 configuration), this system supports both air plasma and oxy-fuel flame cutting torches on a single portable frame to deliver high accuracy without taking up excessive floor space.
- Dual-Fuel Versatility: Easily switches between high-speed plasma and thick-plate oxy-gas flame cutting to handle mild steel, stainless steel, and aluminum.
- Space-Saving Table Frame: Features a robust, low-profile cnc plasma cutting table bed designed for easy loading, ideal for small fabrication shops and mobile sites.

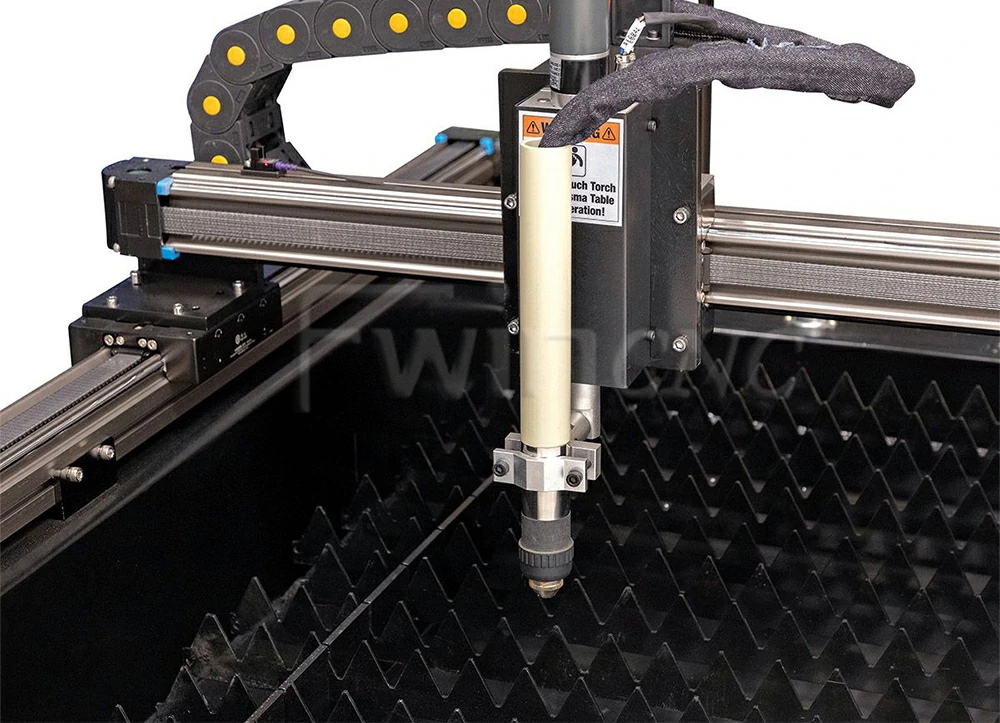

- Precise Drive System: Utilizes high-precision linear guide rails and stepper drives to maintain smooth, vibration-free motion during high-speed cuts.
- Smart Arc Voltage THC: Equipped with an automatic torch height controller that dynamically adjusts the cutting height on warped metal plates.
Maximizing Shop Floor Value with a CNC Plasma Cutting Table
For small to medium-sized metal fabricators, floor space and equipment cost are critical considerations when upgrading to automated manufacturing. Heavy, industrial-grade gantry machines require permanent foundations and substantial capital. Investing in a compact cnc plasma cutting table resolves these challenges, providing a highly productive platform that delivers CNC-grade accuracy at an accessible price point. The independent structural frame handles high-acceleration runs seamlessly, absorbing the vibrations of daily loading and unloading cycles.
Advanced Mechanics of Our CNC Plasma Cutting Table

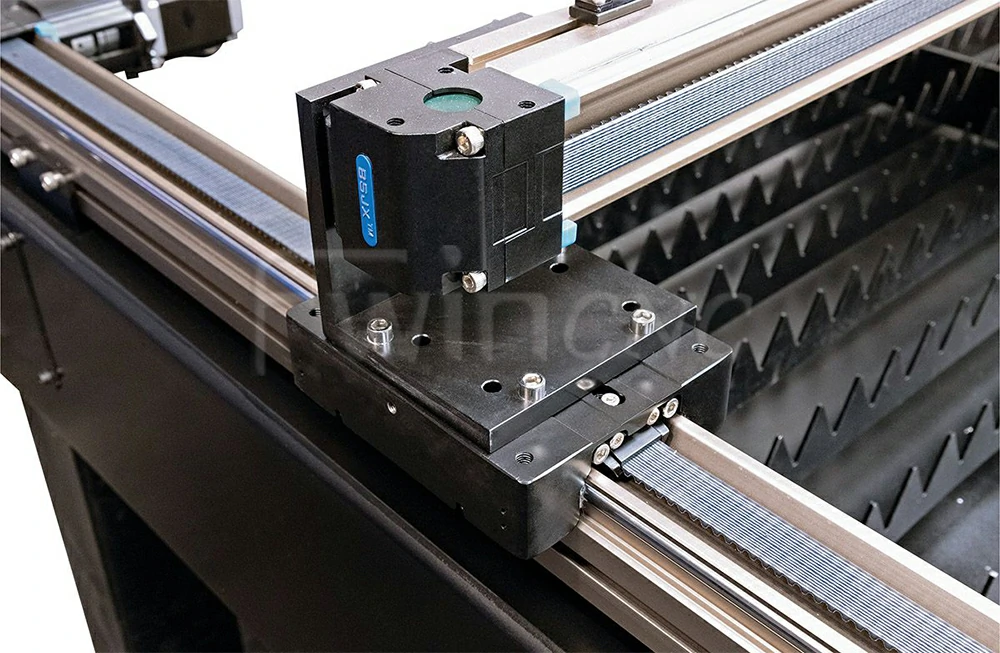

The mechanical structure is engineered with a high-durability welded bed that undergoes stress-relief heat treatment to prevent physical warping. The guide tracks are precision-machined to ensure smooth axis movement and tight positioning tolerances of $\pm 0.2\text{mm}$. By integrating the gas manifolds directly into the side carriage, this space-saving layout keeps the working area clear of tangled hoses, enabling rapid workpiece setups and higher hourly throughput.
- Machinery Fabrication: Cutting custom brackets, structural mounts, and machine frames.
- Sheet Metal Shops: Fast profiling of panels, enclosures, and specialized mounting plates.
- HVAC Systems: Rapid cutting of specialized ventilation ducts and complex pipeline transitions.
- Agricultural Equipment: Manufacturing replacement parts, heavy blades, and trailer frames.
- Advertising & Decorative Art: Creating custom metal signs, complex logos, and decorative screens.
Q1: What materials can this system handle?
A1: This cnc plasma cutting table is highly optimized to cut carbon steel, mild steel, aluminum, and stainless steel under various auxiliary gas setups.
Q2: What is the maximum cutting thickness?
A2: When configured with a standard plasma source, it can cut up to $20\text{mm}$ steel; switching to the integrated oxy-gas torch allows for cutting thicknesses up to $150\text{mm}$.
Q3: Can the CNC plasma cutting table run on standard workshop power?
A3: Yes, the control system is designed to run on standard single-phase voltage, though high-power plasma units will require standard three-phase industrial grids.
Q4: Is specialized nesting software required?
A4: No, the system natively supports standard G-code and DXF imports, allowing for seamless integration with industry-standard CAD/CAM programs.
Q5: How does the height tracking sensor protect the torch?
A5: It utilizes an active arc voltage height sensor to automatically regulate the distance between the plate and the nozzle in real-time, preventing collisions.
