Sheet and Tube Fiber Laser Cutting Machine | Dual-Use CNC Metal Cutter
The Fwincnc sheet and tube fiber laser cutting machine represents the ultimate dual-purpose metal fabrication solution, designed to process flat metal plates and hollow profiles on a single space-saving platform. By merging two distinct industrial capabilities, this integrated workstation empowers fabricators to handle versatile contracts with extreme accuracy and speed.
- Hybrid Dual-Use Platform: The sheet and tube fiber laser cutting machine utilizes a shared laser source and control console to cut both flat sheets and structural tubes.
- Dual Chuck Rotary Axis: Features a self-centering chuck system that clamps round, square, and rectangular profiles up to $220\text{mm}$ in diameter with zero rotational lag.
- Dynamic Height Tracking: Equipped with a highly sensitive capacitive sensor that automatically regulates the nozzle distance, ensuring clean cuts.
- High-Torque Drive System: Integrates premium Japanese Yaskawa servo motors to achieve positioning speeds of up to $80\text{m/min}$ under continuous acceleration.
- Eco-Friendly Efficiency: Consumes up to $30\%$ less electricity compared to traditional CO2 platforms, providing a highly sustainable fabrication solution.
Sheet and Pipe Fiber Laser Cutting Machine
Investing in a Sheet and Tube Fiber Laser Cutting Machine
For small to medium-sized workshops, floor space and capital expenditures are the most significant constraints to growth. Opting for a single sheet and tube fiber laser cutting machine rather than purchasing two separate industrial cutters is a highly strategic business move. This consolidated design allows operators to transition from high-speed flat-bed nesting to complex 3D pipe profiling in a matter of minutes, effectively doubling your production capacity without expanding your facility’s physical footprint.
Advanced Kinematics of the Sheet and Tube Fiber Laser Cutting Machine

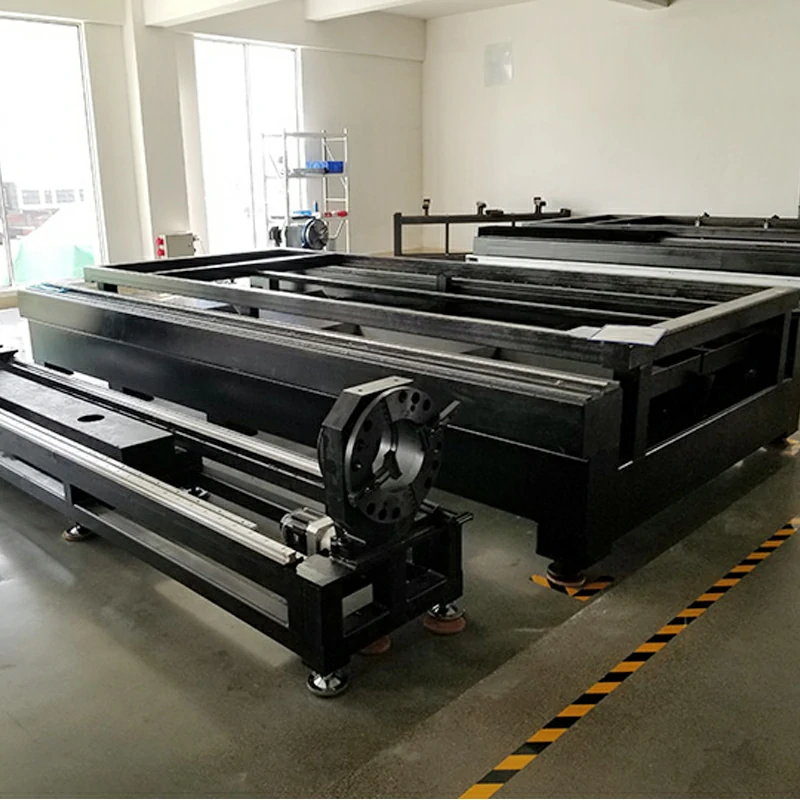

The structural rigidity of the machine bed is engineered to handle heavy load distributions during high-acceleration flat cutting and fast rotary profiling. The independent guide rails undergo induction hardening and precision milling to maintain tight positioning tolerances of $\pm 0.03\text{mm}$. Controlled by professional CypCut CNC software, this sheet and tube fiber laser cutting machine coordinates flat kinematics and rotational axes seamlessly, ensuring perfect nesting patterns and minimizing material waste down to tailing lengths of just $150\text{mm}$.
| Model | working area(L×W) |
| 3015 ST25 | 3000mm×1500mm |
| diameter for round pipe | Ф25mm-Ф200mm 300mm for optional |
| profile for square pipe | 25mm*25mm—100mm*100mm |
| diagonal line for square pipe | 30mm-160mm |
| Length for metal Pipe | 3M/6M |
| pipe style | Square pipe or round pipe |
| laser Power | 1.5KW/2KWW/3KW/6KW |
| Z axis track | 300mm |
| software | Cypcut 3000S controller |
| Drive motion | Japanese Yaskawa servo |
| X,Y axis positioning accuracy | ±0.03mm/m |
| X,Y axis repeat positioning accuracy | ±0.02mm/m |
| X，Y axis max speed | 100m/min |
| transmission | gear rack |
| Max.load of worktable | 1000Kg |
| Working Voltage/Power | 380V/50HZ/10KW |
| service | customized working area |
Sheet and Pipe Laser Cutting Machine Applications
Metal sheet and tube pipe fiber laser cutting machine is versatile and efficient tools that is used in a variety of industries, including automotive, aerospace, construction, and manufacturing. These machines use a high-powered laser beam to cut through metal sheets and pipes with precision and accuracy. The ability to cut both sheet metal and pipes in one machine eliminates the need for separate machines, reducing costs and saving valuable floor space in the workshop.
In addition to cost savings and space optimization, metal sheet and pipe fiber laser cutting machine offers enhanced work efficiency. These machines can cut through a wide range of materials quickly and accurately, resulting in high-quality finished products. The precision of the laser beam allows for intricate designs and complex shapes to be cut with ease, making these machines ideal for custom fabrication projects.
Furthermore, metal sheet and pipe fiber laser cutting machines are capable of cutting a wide range of materials, including steel, carbon steel, stainless steel, aluminum, copper, brass, nickel, and their respective alloys. This versatility makes these machines suitable for a variety of applications and ensures that they can meet the needs of different industries.
Overall, metal sheet and tube laser cutting machines offer a cost-effective, efficient, and versatile solution for cutting metal sheets and tubes. By combining two functions into one machine, these machines provide significant benefits to businesses looking to improve their cutting processes.
Q1: What profile shapes are supported by this hybrid laser system?
A1: This sheet and tube fiber laser cutting machine handles flat sheets as well as round, square, rectangular, and oval tubes seamlessly without needing mechanical tool changes.
Q2: How does the machine prevent tube deformation?

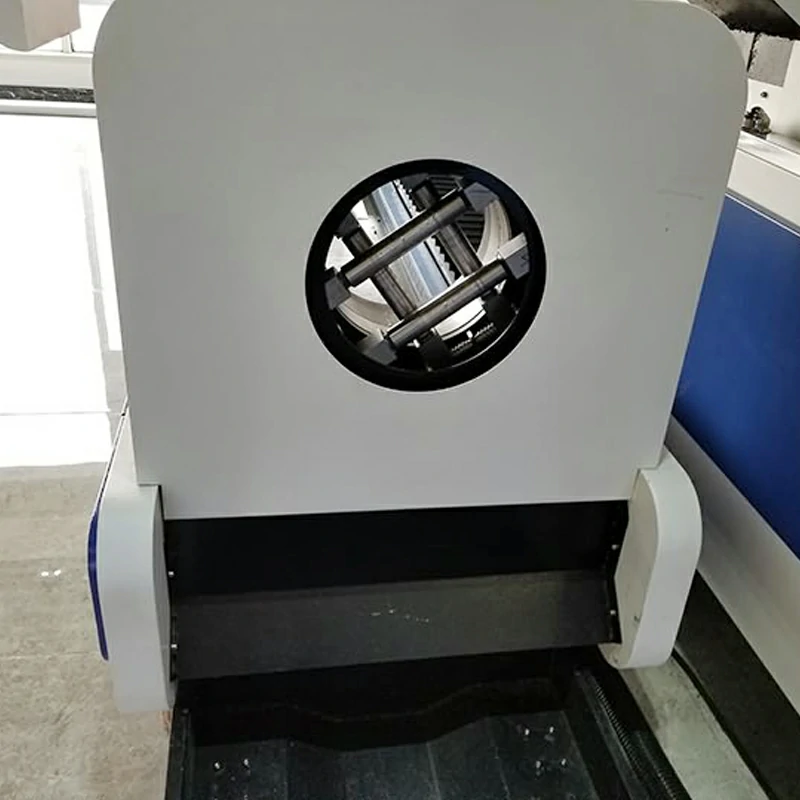

A2: The automatic rotary chuck regulates clamping pressure pneumatically based on tube wall thickness, securing delicate thin-walled profiles without physical crushing.
Q3: What software does the cutting workstation use?
A3: The sheet and tube fiber laser cutting machine runs on the professional CypCut and CypTube software suite, supporting direct DXF and G-code file imports for rapid job setup.
Q4: Is manual height adjustment required when changing materials?
A4: No, the system utilizes active auto-focus cutting heads and capacitive height sensing to adjust the beam focal point automatically in real-time.
Q5: What is the maximum thickness this dual-use machine can process?
A5: When configured with a $3\text{kW}$ fiber source, the platform can cut up to $20\text{mm}$ carbon steel sheets and process wall thicknesses up to $8\text{mm}$ on steel pipes.
Get Free Quote of Sheet and Pipe Fiber Laser Cutting Machine
This fiber laser cutting machine has a rotary feature for cutting both sheet and pipe materials, allowing for seamless switching between the two. Its multi-purpose functionality saves space and reduces costs. The machine has a self-centering, full-stroke chuck for easy clamping and precise positioning of pipes.
