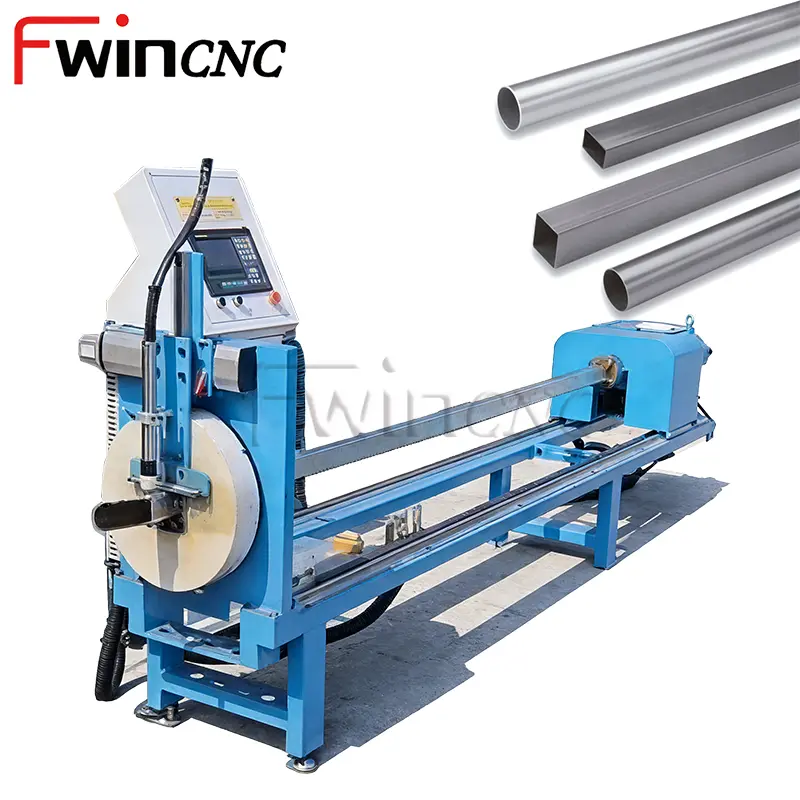

CNC Plasma Pipe Cutting Machine for round square tubes
CNC plasma pipe cutting machine for round, square, rectangular tubes with 6m length and 22 built-in templates.
-
Supports round pipe (20–160mm) and square/rectangular tube (20–100mm) cutting
-
6m pipe length capacity with 200mm chuck
-
Built-in 22 common cutting templates, no CAD drawing required
-
Stepper motor drive for stable and precise motion control
-
240kg loading capacity with manual lifting system
CNC Plasma Pipe Cutting Machine for Metal Tube Processing
Product Detail Introduction
The CNC Plasma Pipe Cutting Machine is a high-efficiency solution designed for processing round pipes, square tubes, and rectangular metal profiles. Engineered for fabrication workshops and industrial production lines, this plasma pipe cutting machine combines precision control, structural stability, and user-friendly operation.
With a cutting range of round pipes from 20–160mm and square tubes from 20–100mm, it covers common tube specifications used in construction, steel fabrication, and mechanical manufacturing. The 6-meter pipe length capacity allows continuous processing of standard material sizes, reducing repositioning time and improving productivity.
| No. | function | For light weight pipe | ||
| 1 | metal pipe | Square pipe/Round pipe diameter | ||
| 2 | Pipe length | 6000mm | ||
| 3 | Cutting Mode | Plasma | ||
| 4 | Rotary attachment | chuck diameter 200mm-1pcs | ||
| 5 | PIPE REQUEST | Square pipe=20-100mm | ||
| round pipe Diameter:20-160mm | ||||
| 6 | Driving and motor | stepper motor | ||
| 6 | loading capacity | 240kgs | ||
| 7 | lifting method | manual | ||
| 8 | Controller system | one set of startfire | ||
| 9 | Height controller | FL4510 | ||
| 10 | rotation speed | 0.1-25r/min | ||
| 11 | position accuracy | ±0.1mm | ||
| 12 | cutting speed | 100~6000mm/min | ||
| 13 | Attached design | 11 cutting patterns | ||
| 14 | input power | 220±10%V AC50HZ/60HZ | ||
| 15 | cutting design | photo showing | ||
| 16 | tramsmission method | USB | ||
| Software | for option | |||
| 17 | programe software | AutoCAD/CAM | ||
Applications
The plasma pipe cutting machine is widely used in:
-
Steel structure fabrication and construction engineering
-
Stair handrail and railing manufacturing
-
Mechanical frame and equipment production
-
Agricultural machinery fabrication
-

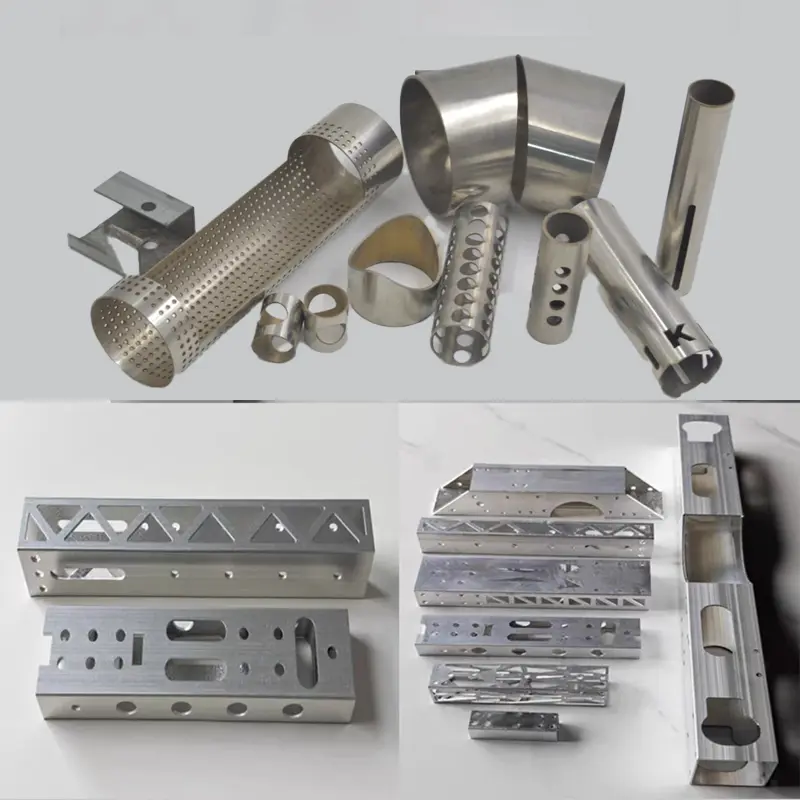

Metal furniture and custom tubular components
Its ability to process round, square, and rectangular tubes makes it suitable for diverse industrial tube cutting applications.
Intelligent Template Cutting System
The integrated 22-template system eliminates complex programming for routine tube cutting tasks. This practical feature allows operators to produce professional joint profiles quickly, improving productivity in small and medium fabrication shops.
Cost-Effective Tube Processing Solution
Compared with manual cutting or semi-automatic systems, this CNC plasma tube cutting machine reduces material waste and rework. Its precise control and stable structure help businesses achieve consistent results while keeping operational costs under control.
Upgrade Your CNC Plasma Pipe Cutting
Improve your tube processing efficiency with a reliable CNC plasma pipe cutting machine designed for accuracy and stability. From standard round pipes to rectangular profiles, this system helps reduce manual work, shorten production cycles, and maintain consistent cutting quality.
Submit your inquiry today to receive technical specifications, configuration options, and competitive pricing tailored to your production needs.
