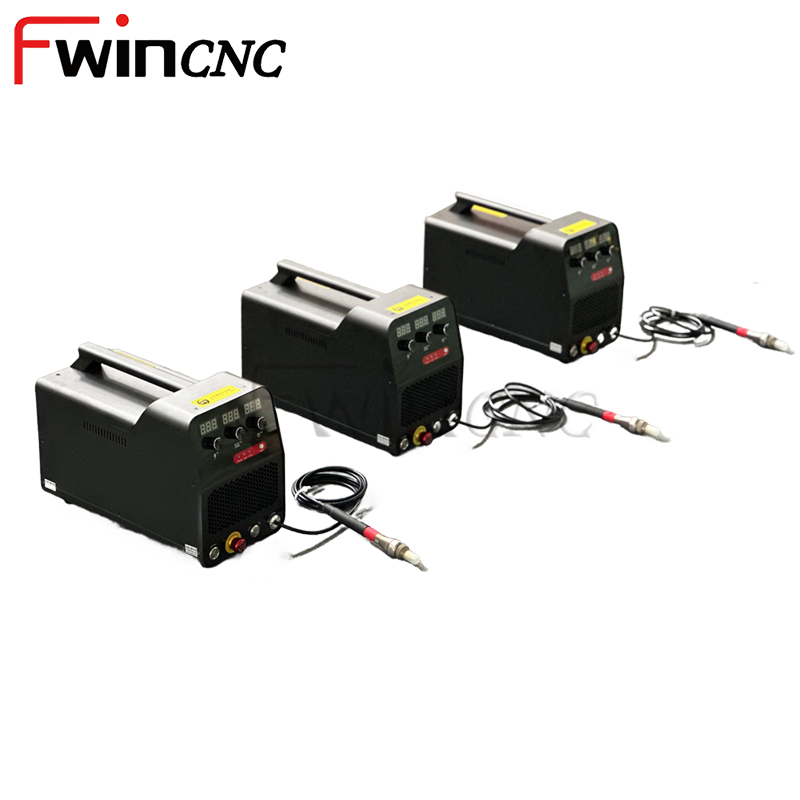

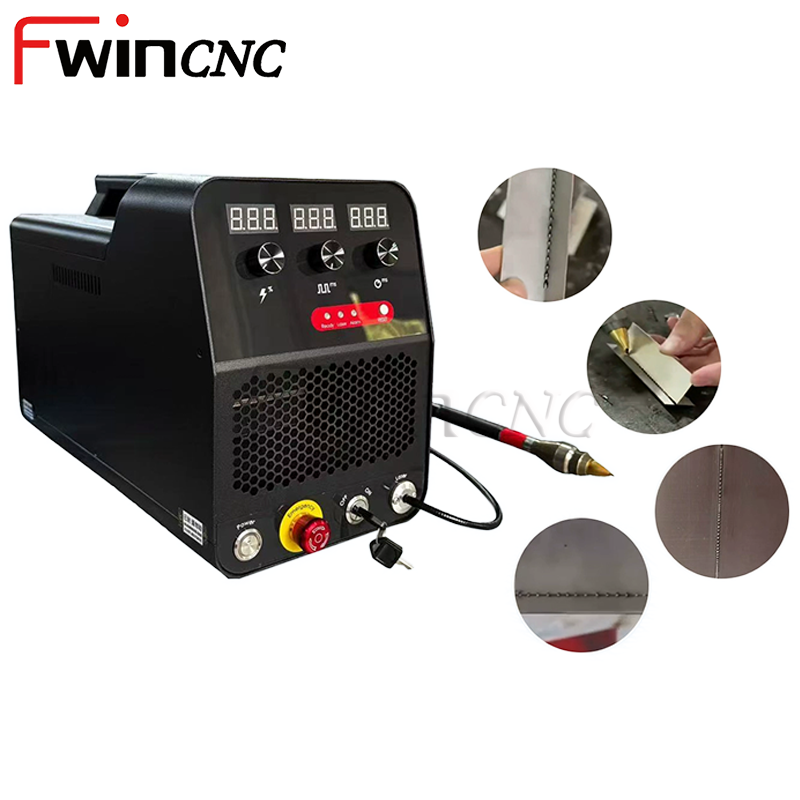

Pulse Laser Spot Welding Machine | Desktop Jewelry Laser Spot Welder
The Fwincnc Pulse Laser Spot Welding Machine, configured as a high-precision Jewelry Laser Spot Welder and a dedicated Precision Laser Spot Welder, represents the ultimate Micro Laser Spot Welding System on the market today. This highly ergonomic Desktop Laser Spot Welder functions as a High-Precision Spot Welder for Metal while remaining easily integrated with any Automated Laser Spot Welding Unit for assembly line operations. Built as a high-performance Pulsed Laser Spot Joining Tool, this compact Industrial Spot Laser Welding Workstation stands as a highly Reliable Fiber Laser Spot Welder for modern workshops.
- Precision Control: The Pulse Laser Spot Welding Machine utilizes high-definition CCD camera monitoring for microscopic accuracy.
- Versatile Metal Handling: Engineered as a premium Jewelry Laser Spot Welder capable of joining gold, silver, platinum, and stainless steel seamlessly.
- Advanced Spot Welding Optics: The Precision Laser Spot Welder employs high-grade optical lenses to focus energy into a spot as small as $0.1\text{mm}$.
- High-Definition Micro Interface: Integrated with a smart Micro Laser Spot Welding System touch-screen control panel for fine-tuning pulse parameters.
- Compact Footprint: Designed as a space-saving Desktop Laser Spot Welder that fits easily on any workbench or assembly table.
- Dynamic Thermal Balancing: Functions as an advanced High-Precision Spot Welder for Metal with dual-circuit water-cooling for 24-hour operation.
- Easy Interface Integration: This Automated Laser Spot Welding Unit easily connects to PLC and robotic arms for high-volume automated lines.
- High-Quality Joint Finish: Operates as a Pulsed Laser Spot Joining Tool that delivers clean, spatter-free joints, eliminating secondary polishing.
- Ergonomic Design: The Industrial Spot Laser Welding Workstation features a built-in microscope with protective shutter filters to reduce eye strain.
- Long-Term Durability: Built with a Reliable Fiber Laser Spot Welder source that ensures stable pulse energy output over millions of flashes.
Pulse Laser Spot Welding Machine Description
Pulse laser spot welding uses short, concentrated bursts of energy to melt a micro-sized area of metal, creating a precise weld with minimal heat transfer to surrounding material. This technology avoids the broad heat-affected zones and distortion seen in traditional welding methods. The process keeps the weld surface clean, reduces post-processing, and supports consistent accuracy on small components.
Choosing a pulse laser spot welder is a technical decision driven by control and stability. The energy delivery is quantized and repeatable, allowing reliable weld formation even on thin or heat-sensitive metals. The localized thermal impact preserves structural integrity, enabling high-precision joining where deformation, discoloration, or warping must be avoided. The method also improves long-term production consistency because each pulse is identical in duration and intensity.
This model integrates a self-developed, high-reliability laser source engineered for long service life and stable optical output. The 13 kg air-cooled architecture eliminates external chillers and reduces maintenance variables. The interface uses a simplified, knob-based parameter system to cut operational overhead and shorten learning time. Adaptive fan control regulates internal temperature according to the working environment, ensuring continuous output stability. With a 0.2–2 mm effective welding thickness range, the system meets the requirements of precision metalwork, small components, repair tasks, and fine manufacturing workflows.
| Product Model | FW-600W/FW-1200W | ||||
| Laser power | 600W/1200W | ||||
| Fiber length | Length: 2 meters | ||||
| Working style | Pulse | ||||
| Cooling mode | Air cooler | ||||
| Welding materia | carbon steel,stainless steel,galvanized sheet steel,aluminum |
||||
| Welding thickness | 0.2-2mm | ||||
| Work environment | -20℃-35℃ | ||||
| Working voltage | 220V 50Hz/60Hz | ||||
| Maxim Power Consumption | ＜2.5KW | ||||
| Net Size/Weight | 390x192x269mm/13KG | ||||
| Pack dimensions//Weight | 540x310x380mm/16KG | ||||
| Pack | Carton |
Portable air-cooled pulse laser spot welding machine applications
- Jewelry fabrication and micro-repair
- Electronics, sensors, precision metal parts
- Watch components, instruments, micro-mechanical assemblies
- Small-scale production, research labs, studios
- Fine repair work requiring low heat input and zero deformation

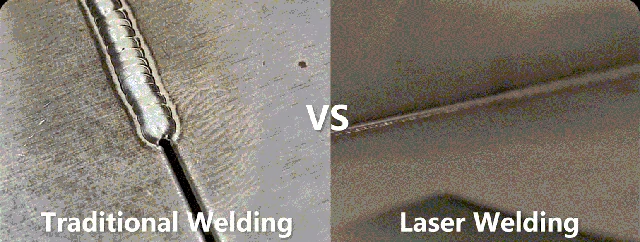

Traditional welding applies broad, continuous heat, causing large heat-affected zones, distortion, discoloration, and higher post-processing. Precision on thin metal is limited, and repeatability depends heavily on operator skill. Pulse laser spot welding concentrates energy into short, controlled bursts, producing clean micro-welds with minimal thermal spread. Thin or sensitive metals maintain structural integrity, and welds form with tighter tolerances. Output is repeatable, surface remains smooth, and deformation is negligible. For small components, electronics, fine repair, and high-accuracy manufacturing, laser spot welding delivers higher precision, stability, and process efficiency.
Get Free Quote of Laser Spot Welder
Delivers precision, portability, and reliability for users needing stable micro-welding without complex training or bulky equipment. Supports fast deployment, clean operation, and long service life. Drives higher yield, lower rework rates, and improved quality control. Guide users to submit inquiry for specifications, samples, and pricing.
