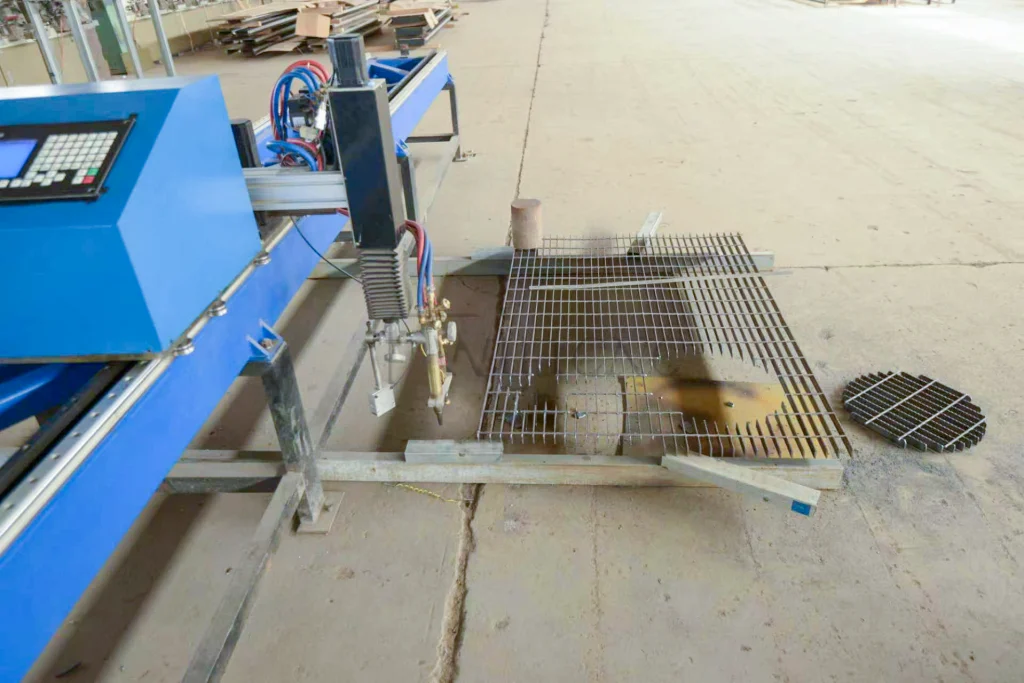

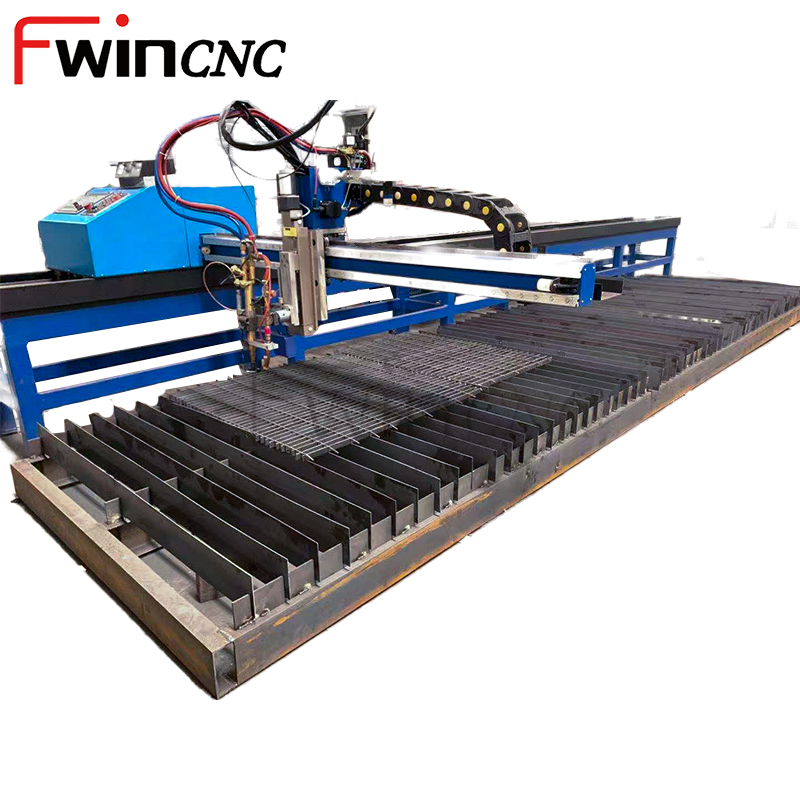

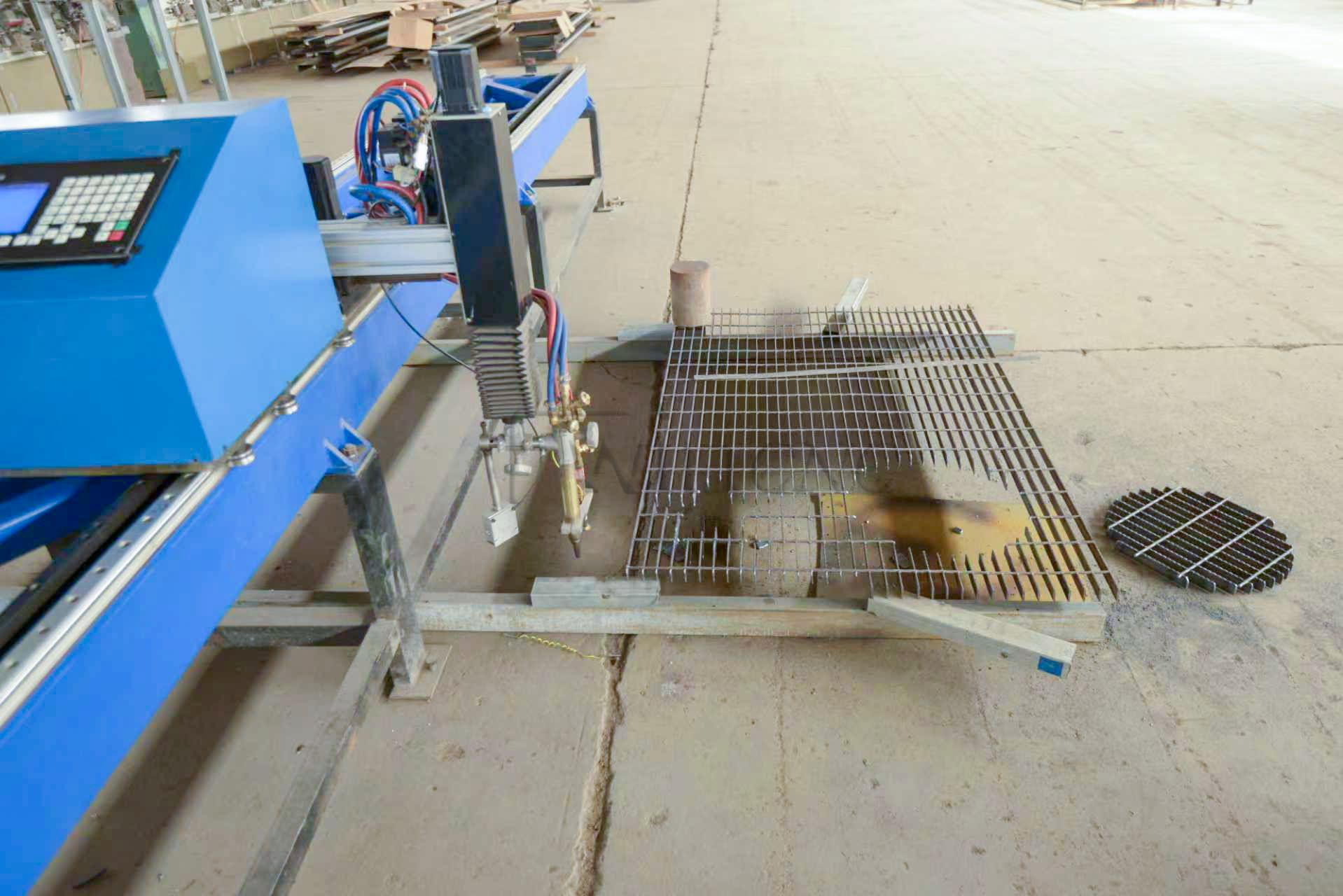

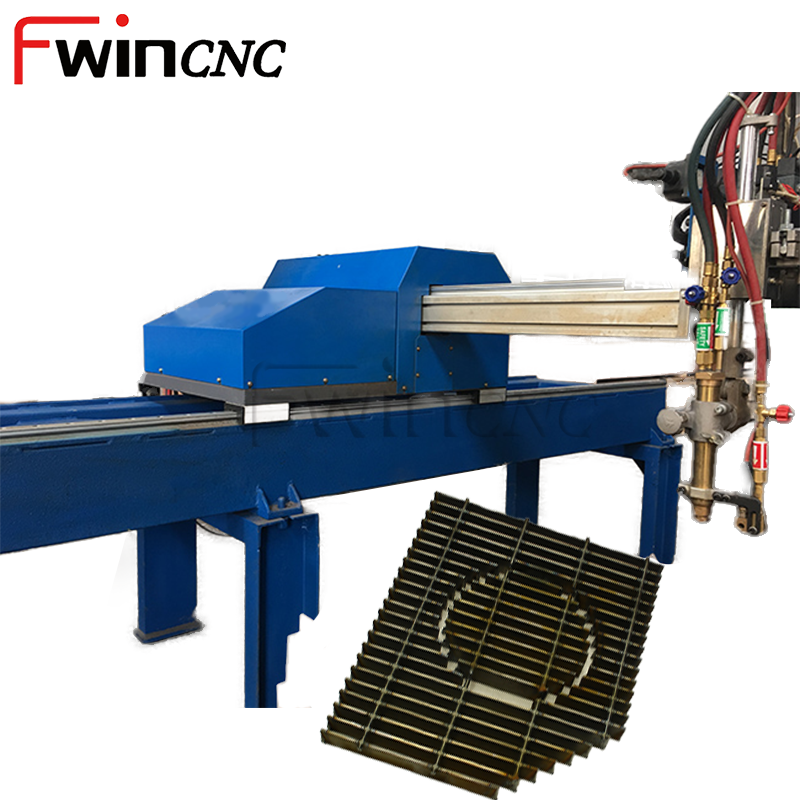

CNC Portable Oxy Fuel Grid Cutting Machine
Portable grid cutting machine for fast oxy-fuel processing in industrial B2B metal fabrication.
- High-temperature oxy-fuel cutting for steel grids.
- Portable CNC structure for on-site operations.
- Stable motion control for clean, uniform cuts.
- Low operating cost with efficient fuel use.
- Fits diverse grid sizes for flexible production.
Grid Cutting Machine Description
The CNC portable oxy-fuel grid cutting machine is engineered for continuous industrial use where steel grating, mesh panels, and structural grid materials must be processed with accuracy and speed. The system integrates a stable CNC guiding platform with high-energy oxy-fuel cutting technology, enabling deep thermal penetration through thick grid bars without loss of straightness or cut integrity. Its portable structure allows deployment in fabrication plants, construction sites, and contract manufacturing environments where fixed cutting tables are impractical or cost-prohibitive.
The CNC motion unit maintains consistent torch height, cutting speed, and path accuracy, reducing operator intervention and lowering the risk of uneven kerfs or thermal distortion. This results in smoother edges, cleaner intersections, and reduced post-processing workload. The machine handles both standard and non-standard grid dimensions, making it suitable for varied production runs and diverse customer specifications. The portable design also allows flexible workflow layout, letting operators position the machine directly over prepared grid material instead of repositioning large, heavy panels.
The oxy-fuel torch system uses affordable fuel sources while delivering a high-temperature flame capable of penetrating heavy gauge steel bars efficiently. This ensures reliable performance on carbon steel gratings, industrial flooring grids, staircase steps, trench covers, machinery platforms, and ventilation grilles. The systemās thermal efficiency reduces cutting time per grid and supports high-volume production environments where throughput is critical.
The structure emphasizes operational durability. Reinforced guide rails resist deformation from heat and long-term vibration. The CNC controller uses simplified logic to minimize failure points and ensure dependable repetitive cutting. Routine maintenance is minimal; primary wear components are easy to replace, ensuring long operational cycles with limited downtime. The result is a cutting machine that provides predictable, repeatable output for manufacturers needing stable grid processing capabilities.
This system supports B2B buyers in metal fabrication, infrastructure construction, steel product manufacturing, and industrial supply. Compared to manual torch cutting, it increases efficiency, improves dimensional consistency, and reduces scrap rates. Compared to large fixed cutting tables, it lowers acquisition cost and optimizes space. The machine is a practical solution for companies that require industrial performance without heavy equipment complexity. It delivers controlled oxy-fuel cutting, flexible deployment, and reliable operation, making it a high-value tool for continuous grid production.
Grid Cutting Machine Applications
The grid cutting machine is used across multiple metalworking sectors that rely on consistent processing of steel grates and mesh-based components. In steel grating factories, it supports high-volume production of load-bearing flooring panels for walkways, platforms, and maintenance decks. Construction suppliers use it to manufacture custom-sized panels for drainage channels, stair treads, ventilation openings, and building faƧade elements. Heavy industrial plants deploy it for processing safety platforms, protective screens, machine bases, and anti-slip flooring structures.
Mining, petrochemical, and energy sectors use steel gratings extensively for elevated working surfaces and safety installations. The machine provides the dimensional accuracy required for these high-load environments. In municipal infrastructure, it supports production of trench covers, sewer grates, and access walkway panels. OEM manufacturers use it to create specialized grid components for industrial machinery, factory equipment, and large-scale fabrication systems.
Any operation that must cut bar-type steel grids, mesh plates, or grate panels benefits from the machineās cutting stability, especially when producing repeated patterns or handling oversized panels that are difficult to move. The machineās portability allows grid processing directly at the material handling area, reducing logistics steps and improving throughput.
Get Quote for Grid Cutting Machine
Boost production efficiency with stable oxy-fuel grid cutting built for industrial workloads. Reliable accuracy, portable structure, and low running costs help streamline your operations. Submit an inquiry to receive tailored technical guidance and pricing.
