Ground Rail 5-Axis Fiber Laser Cutting Machine
High-performance Ground Rail 5-Axis Fiber Laser Cutting Machine for wholesale heavy-duty plate and profile bevel fabrication.
-
Heavy-Duty Ground Rail Architecture: Separates the structural frame from material load-bearing, providing stability, high dynamic rigidity, and sag-free precision across extra-long workpieces.
-
5-Axis 3D Linkage & Beveling: Features X/Y/Z linear motion plus B/C rotational axes via the Black Warrior 5-axis head for complex 3D profiles, beveling, and intersecting lines.
-
Ultra-Large Processing Range: Standard 26000mm x 3000mm cutting bed with continuous extended length options (12m to 48m) for oversized plates, H-beams, and box girders.
-
High-Power Thick Plate Cutting: Supports 3kW to 20kW+ laser sources, cutting carbon steel up to 50mm and stainless steel up to 25mm with minimal thermal deformation.
-
High-Efficiency Material Utilization: Large-format surface nesting and shared-edge cutting optimize raw material yield and lower operating overhead.
Ground Rail Laser Machine Description
The Ground Rail 5-Axis Fiber Laser Cutting Machine is an industrial 3D laser processing workstation engineered for extra-large metal plates, heavy profiles, and complex structural components. Designed with an advanced ground rail structure, the machine bed is completely separated from the material load platform. This decoupled load architecture ensures zero structural deflection, continuous alignment stability, and consistent geometric accuracy even when handling heavy workpieces weighing multiple tons.

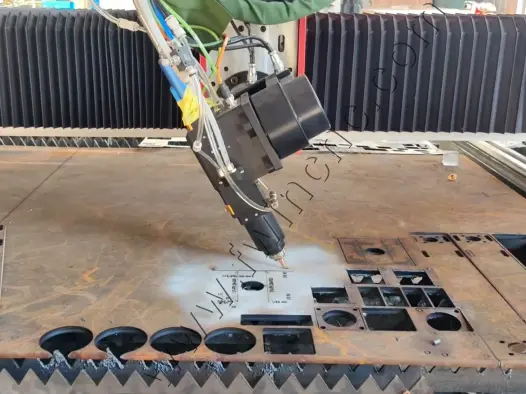

Equipped with the Black Warrior WS15B 5-axis laser head and WEIHONG LS20A control system, this machine coordinates X/Y/Z linear axes with B/C rotational axes to execute intricate 3D contours, bevel joints, intersecting lines, and curved surfaces in a single clamping setup. By replacing secondary mechanical milling, drilling, and manual flame beveling, it reduces labor overhead while raising throughput.
Available with 3000W, 6000W, 12000W, and 20000W Raycus or MAX fiber laser sources, the machine processes carbon steel up to 50mm and stainless steel up to 25mm. High power output delivers fast cutting speeds and narrow heat-affected zones, completely replacing noisy traditional oxy-fuel and plasma cutters.
For specialized tubular or structural steel cutting requirements, explore our dedicated Metal Pipe Cutting Machine category to discover options tailored to your shop floor needs.
| Parameter / Feature | Specification / Detail |
| Model | Ground Rail 5-Axis Fiber Laser Cutting Machine |
| Processing Range | 3000 mm x 26000 mm (Feed height: 200 mm; Length customizable 12m–48m) |
| Machine Bed & Gantry | Thick-walled welded square tube bed (aged treatment) + Aluminum alloy gantry |
| Laser Power Options | 3000W / 6000W / 12000W / 20000W (Raycus or MAX Laser) |
| Transmission System | Taiwan 35 linear guide rails + Taiwan 2-module ground helical racks |
| CNC Control System | WEIHONG LS20A System |
| Laser Cutting Head | Black Warrior 5-Axis Laser Head WS15B (5-Axis linkage with beveling) |
| Cooling Unit | S&A (Teyu) Industrial Water Chiller |
| Servo Motors & Drivers | Inovance Servo Motors (2900W x 3 + 750W x 1) |
| Electrical Components | Delixi + Schneider Electric Components |
| Assist Cutting Gas | Compressed Air (>= 1.6MPa), Oxygen (O2), or Nitrogen (N2) |
| Operational Dimensions (LWH) | 30.0 m x 4.5 m x 2.2 m |
| Shipping Dimensions (LWH) | 11.0 m x 2.2 m x 2.3 m |
| Total Machine Weight | Approx. 15 Tons |
Industrial Application Fields
Ground Rail 5-Axis Fiber Laser Cutting Machine Application
The Ground Rail 5-Axis Fiber Laser Cutting Machine is designed for heavy manufacturing sectors that require large-format plate profiling and 3D bevel preparation:
-
Heavy Steel Structures & Bridges: Processing extra-long steel plates, H-beams, box girders, and architectural truss connection plates.
-
Shipbuilding & Offshore Engineering: Cutting thick hull plates, deck structures, rib profiles, and curved structural components.
-
Wind Power & Energy Infrastructure: Processing large wind turbine flanges, tower internal structures, and heavy mounting bases.
-
Mining & Earthmoving Machinery: Precision fabrication of excavator boom arms, loader chassis frames, and mining dump body liners.
-
Specialized Vehicles & Agriculture: Manufacturing trailer frames, crane booms, tank shell plates, and agricultural equipment chassis.
-
Power & Transmission Towers: High-speed profiling and multi-angle bevel cutting of structural steel columns and cross-arms.
To maintain high production uptime and extend machine operational lifespan, we supply factory accessories and auxiliary support:
-
Laser Consumables: Original Black Warrior protective windows, focus lenses, ceramic rings, and specialized bevel nozzles.
-
Air Compressor Systems: Laser-grade high-pressure oil-free air compressors equipped with integrated dryers and multi-stage filtration units.
-
Environmental Systems: Multi-zone automatic dust extraction and fume filtration units optimized for ground-rail bed configurations.
Request A Quote For Ground Rail Machines
Invest in the Ground Rail 5-Axis Fiber Laser Cutting Machine to upgrade your heavy manufacturing capabilities. By combining ultra-large format bed designs, 5-axis beveling, and fiber laser power up to 20kW+, our equipment helps you cut processing time, reduce material waste, and lower labor expenses.
Why partner with us:
Direct factory customization for cutting bed lengths from 12m up to 48m.
Comprehensive technical support, installation guidance, and operational training.
Long-term warranty protection and fast original spare parts distribution worldwide.
Contact our engineering team today to submit your project requirements and receive a customized quotation and process consultation!
