Head Plasma Cutting Bevel Machine | CNC Plasma Beveling Cutter
The Head Plasma Cutting Bevel Machine, serving as an advanced CNC Plasma Beveling Cutter and featuring a Precision Rotary Beveling Head, represents the absolute benchmark of an Industrial Plasma Beveling System. Engineered as a high-performance Weld Prep Plasma Cutting Machine and a highly robust Heavy-Plate Plasma Beveling Workstation, this versatile Multi-Axis Plasma Beveling Table integrates a High-Precision Plasma Bevel Cutter to deliver a fully Automated Plasma Plate Beveling Tool standard. Utilizing our robust, factory-tested design, it stands as a highly Reliable Plasma Beveling Equipment option for modern metal fabricators.
- Dynamic Angle Capabilities: The Fwincnc Head Plasma Cutting Bevel Machine achieves continuous $\pm 45^\circ$ cuts using a synchronized CNC Plasma Beveling Cutter interface.
- High-Torque Performance: Powered by a Precision Rotary Beveling Head, this Industrial Plasma Beveling System maintains cutting tolerances of $\pm 0.5\text{mm}$ under full loads.
- Weld-Ready Output: Functions as a top-grade Weld Prep Plasma Cutting Machine, transforming any standard shop floor into a high-capacity Heavy-Plate Plasma Beveling Workstation.
- All-in-One Automation: This Multi-Axis Plasma Beveling Table integrates a High-Precision Plasma Bevel Cutter to eliminate manual bevel grinding entirely.
- Seamless Integration: Our Automated Plasma Plate Beveling Tool pairs with advanced CAM packages, making it a highly Reliable Plasma Beveling Equipment setup.
What is a head?
Head is a curved structural member used to close off the end of a pipe, vessel or equipment, usually in the shape of a circle, oval, disk, cone or hemisphere. It is an important part of pressure vessels, tanks, piping systems and other equipments, playing the roles of sealing, pressure bearing and structural support.
 |
Heavy Gantry
Heavy duty gantry structure for stability |
| Plasma power supply
High stability inverter power supply, faster cutting speed and higher precision |
 |
 |
CNC system Professional Head Cutting Control System, the system includes 8 standard head shapes, after filling in the parameters, it can automatically generate head cutting programs. These 8 shapes have already met 90% of customer needs. |
| Automatic height adjustment system
With torch anti-collision function, when the cutting nozzle touches the steel plate, the controller will quickly lift the torch for a certain distance to effectively protect the cutting nozzle. |
 |
 |
Fitted Angle Bevel Swivel Head
Automatic, efficient and precise cutting of heads, bevels and complex geometric shapes |
| Effective length of work area | 3,000 to 30,000 mm |
| Effective width of work area | 1,500 to 8,000 mm |
| Possible cutting processes | plasma, oxyfuel |
| Maximum material thickness plasma | according to plasma source |
| Maximum material thickness oxyfuel | 200 mm |
| Positioning speed | up to 40,000 mm/min |
| Positioning accuracy | ≤ 0.10 mm/m |
| X, Y axis | linear guides, driven on both sides and helical toothed racks |
| Z axis | ball screw |
| Gantry type | massive steel gantry |

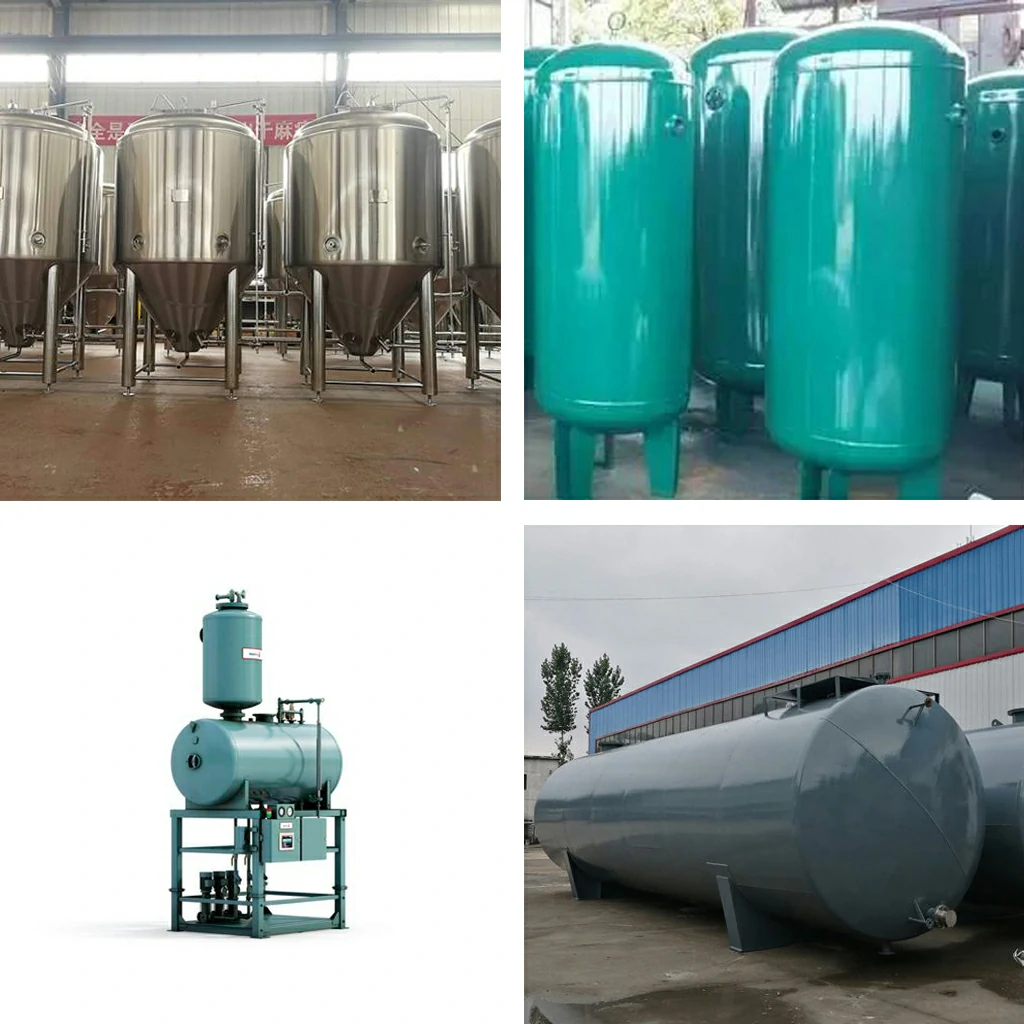

Plasma Vessel Head Cutting Machine Applications
Applications
(1) Pressure Vessel Industry
Boiler Head, Reactor Vessel End Cover, Tank Head
(2) Oil and Gas
Pipeline End Caps, Spherical Tank Heads, Flange Connectors
(3) Shipbuilding and Marine Engineering
Hull Curved Components, Hatch Covers, Propulsion Components
(4) New Energy Equipment
Wind Turbine Tower Heads, Hydrogen Storage Tanks, Nuclear Power Equipment
| Type | Shape Characteristics | Typical Applications |
| Elliptical Head | Semi-ellipsoidal surface, moderate
depth |
Pressure vessels, chemical reactors (most
common) |
| Hemispherical Head | Semi-spherical shape, highest
pressure resistance |
High-pressure boilers, nuclear power
equipment |
| Dished Head | Shallow curved surface with
central spherical crown and transition ring |
Low-pressure storage tanks,
food/pharmaceutical equipment |
| Conical Head | Conical or tapered structure | Pipe reducers, granular material discharge
ports |
| Flat Bottom Head | Flat plate structure (simple but
weak pressure resistance) |
Atmospheric pressure vessels, manhole
covers |
plasma head cutting VS traditional processing methods
| Comparison Item | Traditional Method (Manual +
Milling) |
CNC Plasma Head Cutting Machine |
| Processing Accuracy | ±2mm | ±0.5mm |
| Bevel Quality | Requires secondary processing,
inconsistent |
One-step forming, uniform and precise |
| Production Efficiency | 8-12 hours/piece | 1-2 hours/piece |
| Labor Dependency | Highly skilled welders/millers
required |
Automated operation, low dependency |
| Material Utilization Rate | 60%-75% | 85%-92% |
