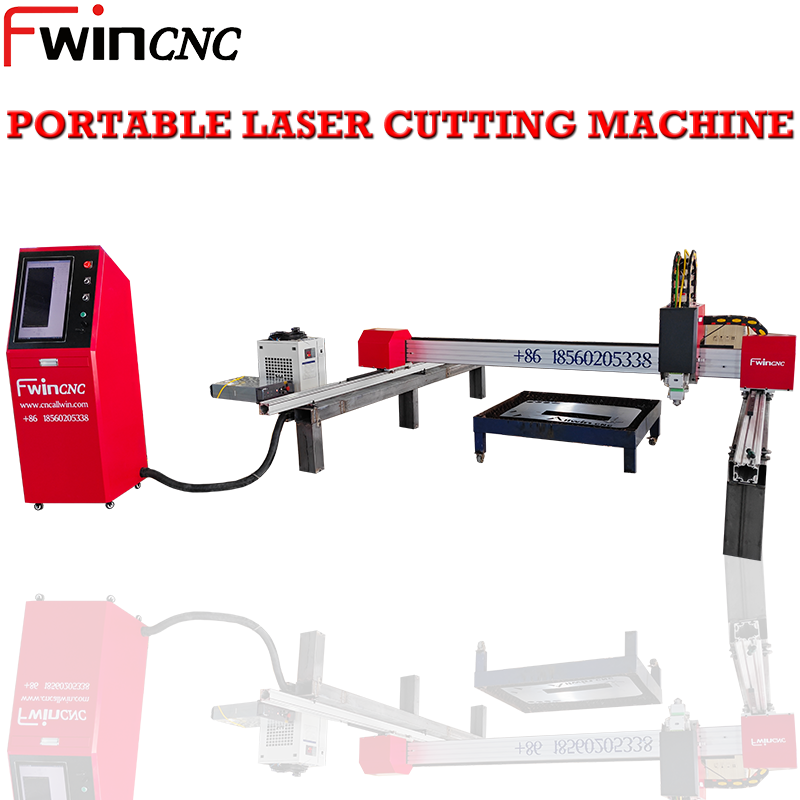

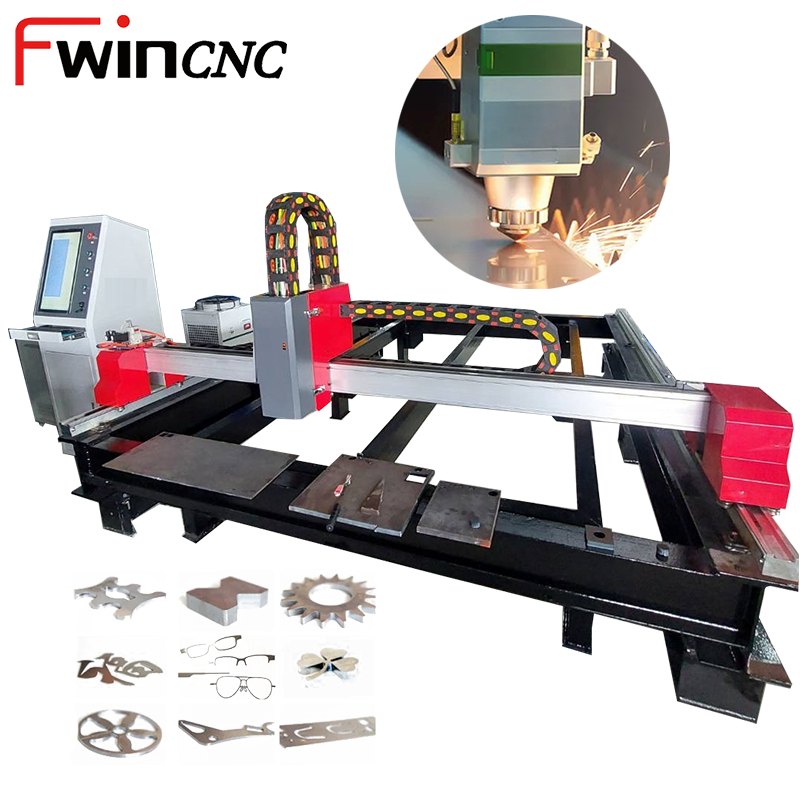

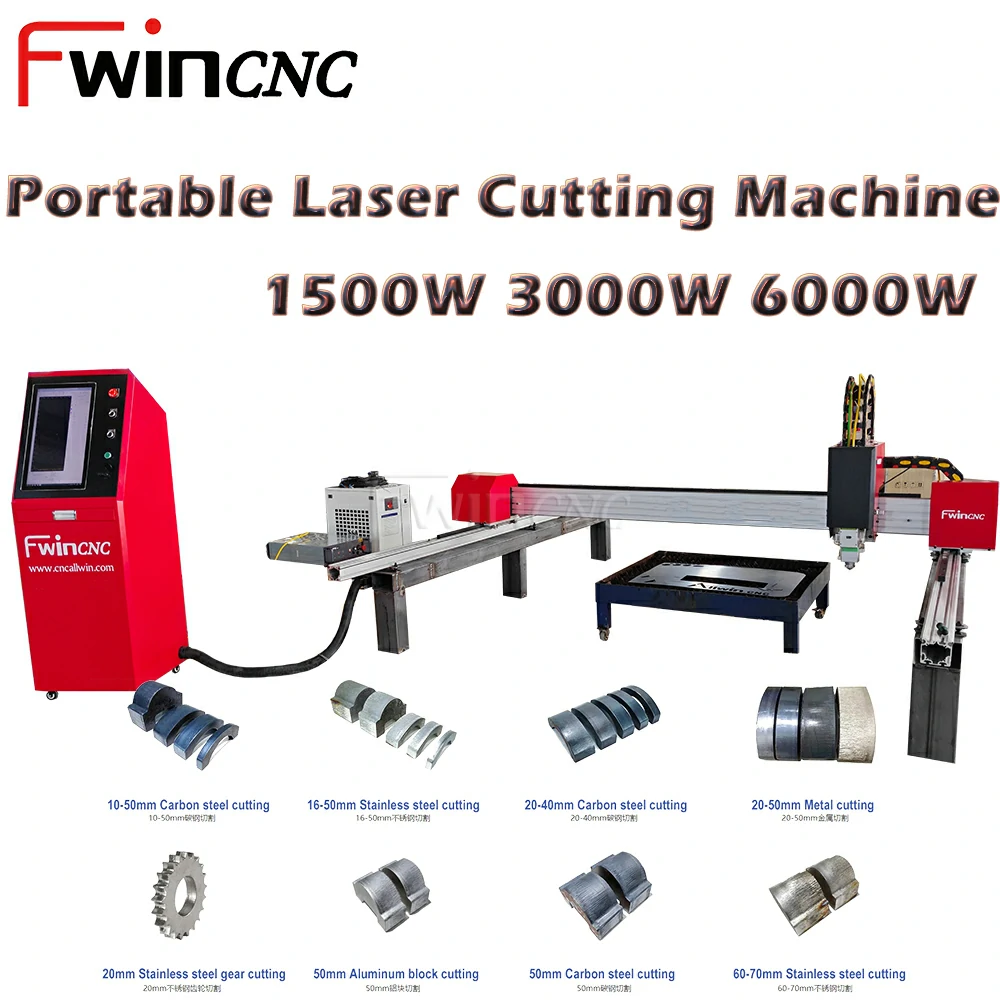

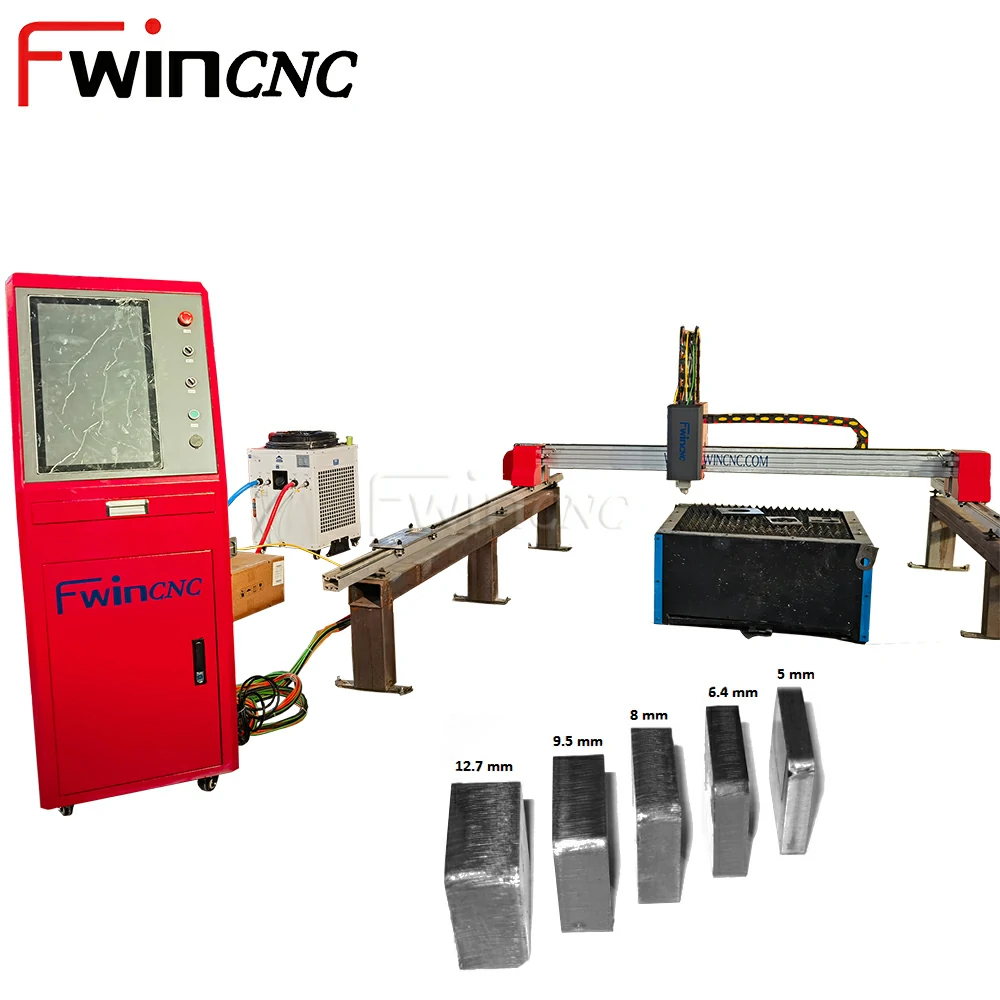

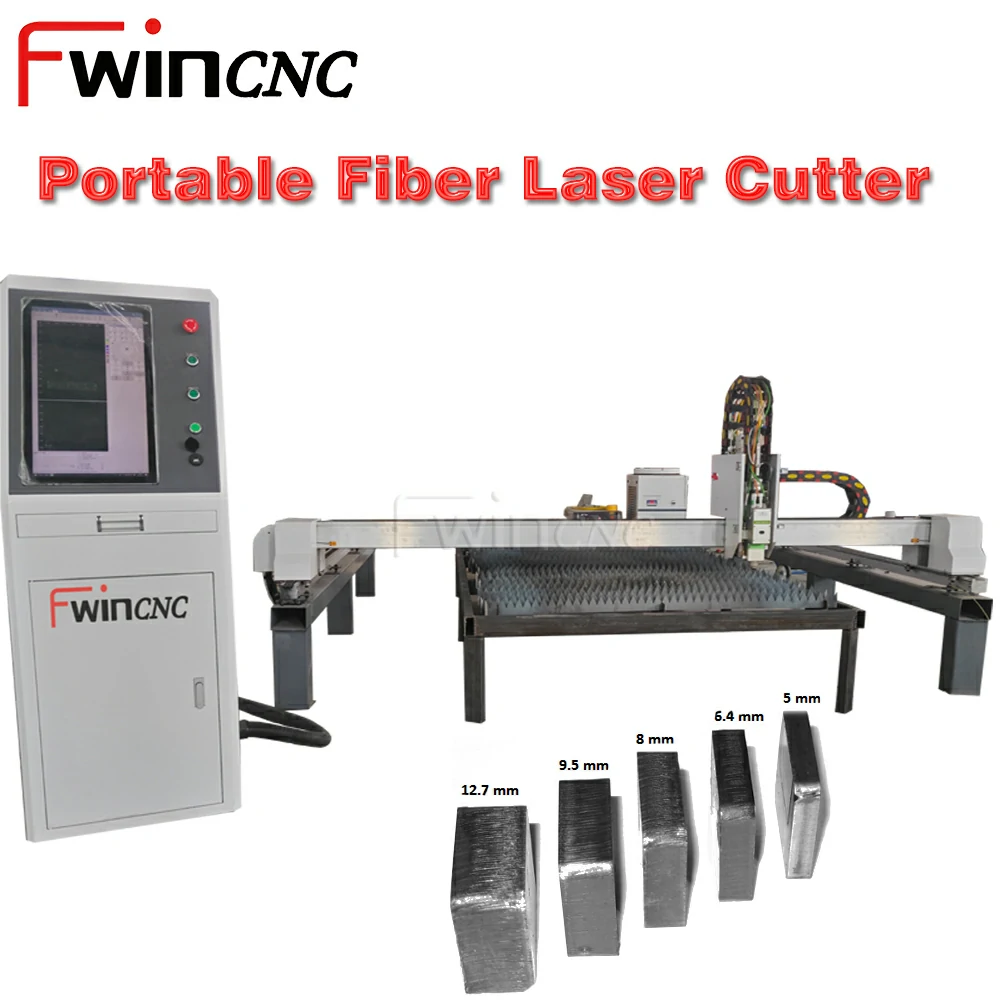

The portable laser cutting machine offers exceptional efficiency, a spacious cutting area, and effortless mobility.
The portability of this laser cutting machine allows for easy transportation and setup in different work wnvironments. Whether it’s a small workshop or a large manufacturing facility, this manchine can be conveniently moved and utilized wherever it is needed. The high precision cutting capabilities of this machine ensure clean and caaurate cuts every time. Its advanced laser technology allows for precise measurements.The user-friendly nature of this laser cutting machine makes it accessible to both experienced operators and beginners. Its intuitive interface and easy-to-use controls simplify the operation process, reducing the learing curve for new users.This user-friendliness also enhances productivity, as operators can quickly and efficiently set up and operate the machine.

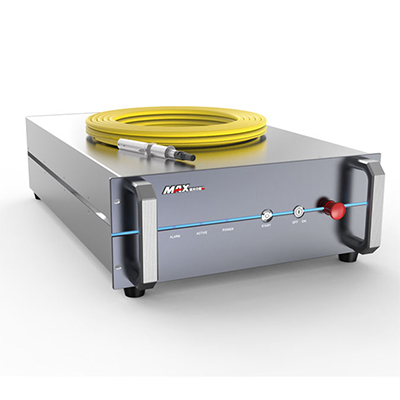

 | MAX LASER SOURCE Good beam quality Small and sturdy Built-in cooling fan |

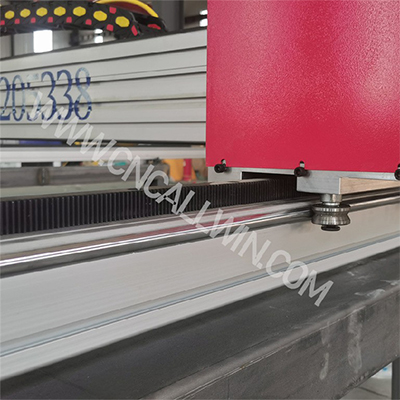

| X-AXIS PULLY AND RACK Smooth Operation |  |

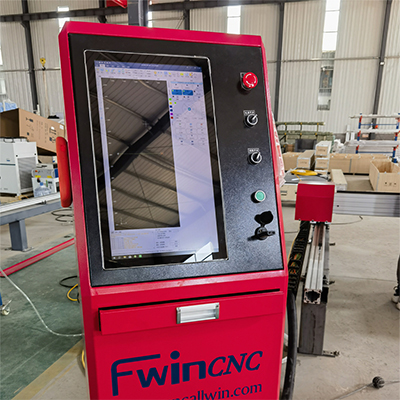

 | CNC OPERATION DISPLAY SCREEN Real-time monitoring |
| RAYTOOLS LASER CUTTING HEAD High-quality and accurate cuts |  |

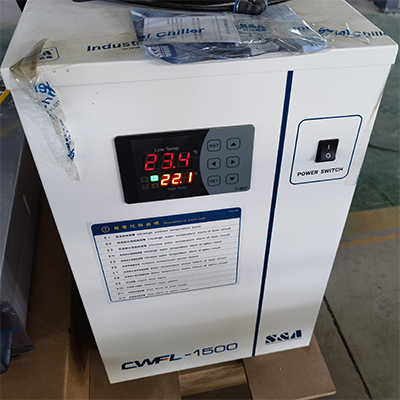

 | INDUSRTIAL WATER CHILLER Real time display current water temperature. cooling, another for cutting head cooling,efficient assist machine running. |
| HEIGHT AUTO-ADJUSTMENT SYSREM No-contact height following function. according to the height of metal plate |  |

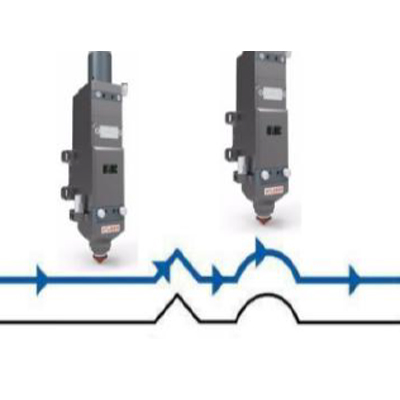

 | Obstacle Auto-avoidance Function Preventing collision due to metal plate warping,other foreign matters. |
| 1 | max working area | 2000mmx3000mm | |||
| 2 | packing size | 3660mm *1170mm *1170mm 680KGS | |||
| 3 | Laser source | MAX BRAND 1500W/3000W/6000W | |||
| 4 | laser head | Swiss RAYTOOLS BM110 with auto focus | |||
| software | Professional raytools software | ||||
| 5 | motor and driver | HCFA servo and driver | |||
| 6 | .Positioning accuracy along the X, Y, and Z axes | ±0.03mm | |||
| The temperature mode of operation | 0℃~40℃ | ||||
| 7 | proportional valve for automatic gas control | Taiwan SMC Proportional valve | |||
| 8 | electrical components | Top chinese brand Chint | |||
| Water chiller | HANLI brand with Dual temperature,dual control | ||||
| 9 | working voltage for 1.5kw/2.0kw | 1 PHRASE 220V with 50Hz | |||
| working voltage for 3.0kw | 3phrase 380V with 50hz | ||||
| 10 | cutting capacity with 3000W | 18mm thickness for carbon steel | |||
| cutting capacity with 3000W | 8mm thickness for stainless steel | ||||
| cutting capacity with 1500W | 12mm thickness for cabon steel | ||||
| cutting capacity with 1500W | 5mm thickness for stainless steel | ||||
Portable laser cutting machines are widely utilized across different sectors including automotive, aerospace, eletronics, and manufacturing.These devices provide accurate cutting abilities and versatility, making them well-suited for industries that demand intricate and precise cutting of metal materials. Moreover, these machines are favored in sectors where mobility is essential, enabling efficient on-site cutting and manufacturing operations.
As the name suggests, one of the primary advantages of portable laser cutting machines is their mobility.
These machines are typically smaller package size it helps to save a lots of freight cost with custom clearance at the destination for customers. Its total package size is only 3.20CBM. Comparation of table style fiber laser cutting machine 16.00CBM. obviously it helps us to save a lots whatever in transportation cost and custom clearance fee.
Especially to African countries or south America. Due to their custom clearance is related with package size. its upto 300usd dollars per CBM.
Portable fiber laser cutting machines typically have lower initial investment costs compared to larger fixed fiber laser cutting machine. Additionally, they offer cost savings in terms of reduced material handling and transportation expenses This makes them a cost-effective solution for small to medium-sized businesses or contractors looking to add laser cutting capabilities to their operations.
There are variety model like 1530/1560/2030/2040/2060/2530/2560
Its effective working size:1500mm*3000mm/ 1500mm*6000mm / 2000mm*6000mm/2000mm*4000mm/2500mm*3000mm/2500mm*4000mm
/2500mm*6000mm..its almost same package size.
Overall, the portability, flexibility, ease of setup, cost-effectiveness, high precision, and energy efficiency make portable fiber laser cutting machines an attractive option for a wide range of cutting applications in various industries.
With top brand servo motor and driver and Japanese brand reducer.
X,Y transmission rails is high grinding rack.
Structurer of framework is made of aviation aluminum. Its very durable with high density material.
Its empty running speed could upto 30meter per minutes without any shake
If you interested in it please contact with us for video proof.
To provide you with an accurate quotation, we would appreciate it if you could provide us with some details about your specific needs.
Our company is committed to the research and development, production and sales of intelligent manufacturing equipment and its key components, with vertical integration capabilities form basic devices, complete equipment to process solutions.
