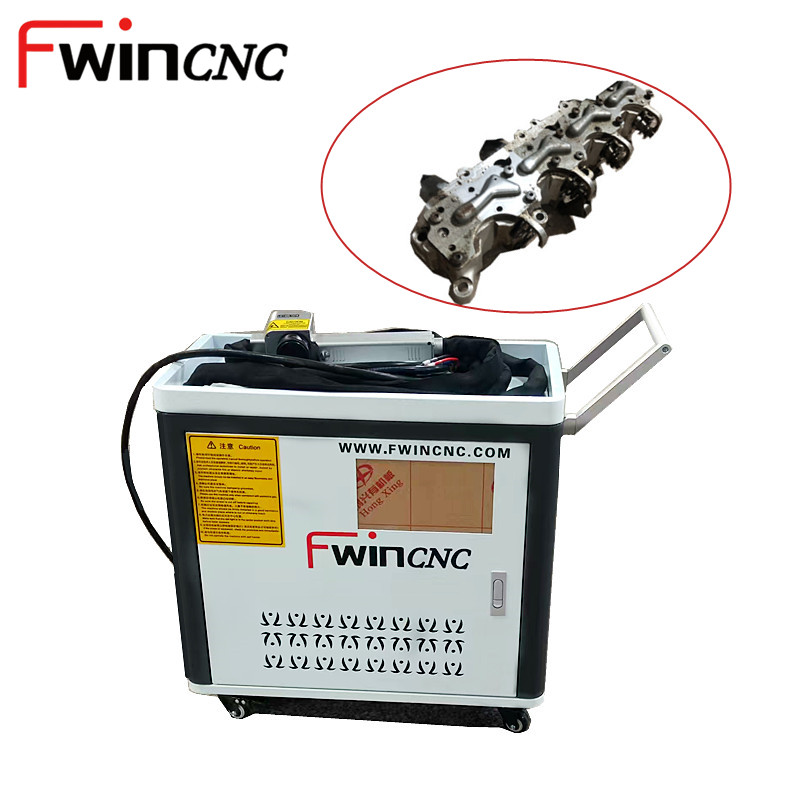

Fwincnc 300w pulse fiber handheld laser cleaning machine for paint and rust removal Laser cleaner system

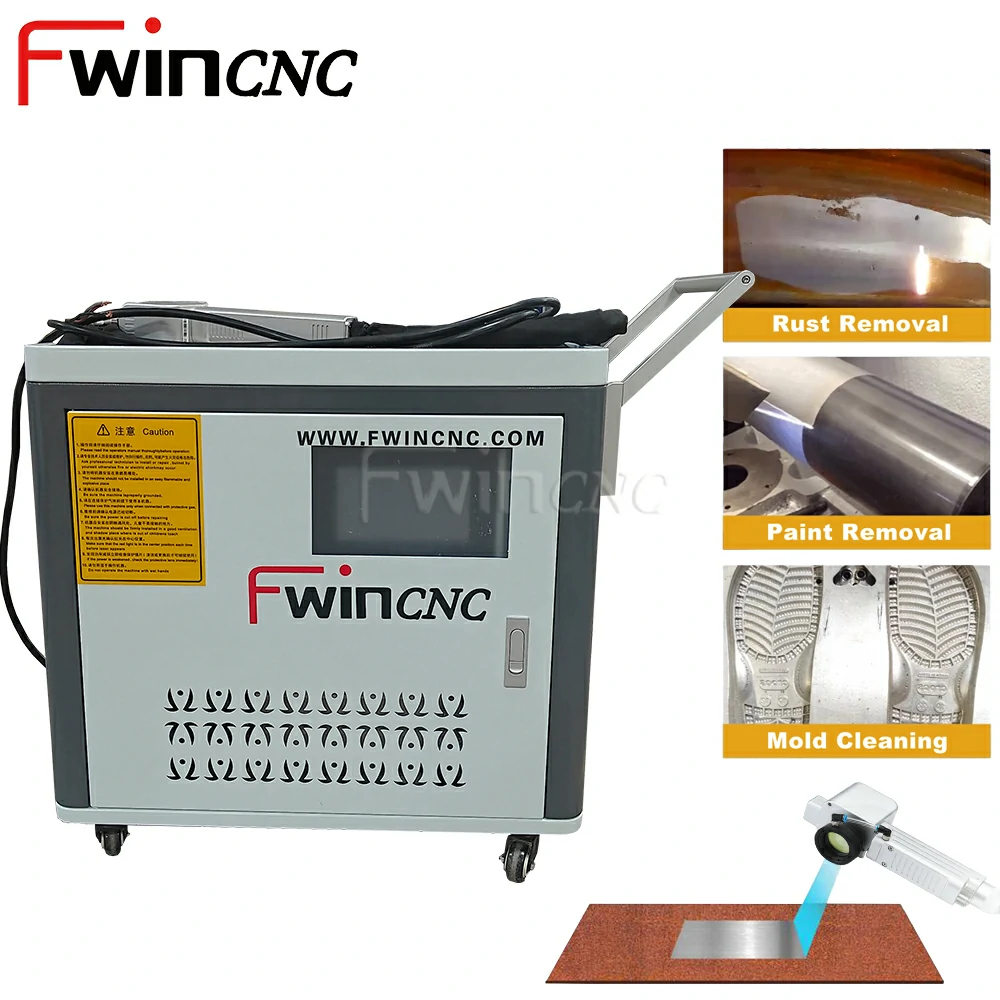

Fwincnc Handheld Pulse Laser Cleaning Machine Paint Rust Oil Stains Removal 100W 200W laser cleaner Rust Removal

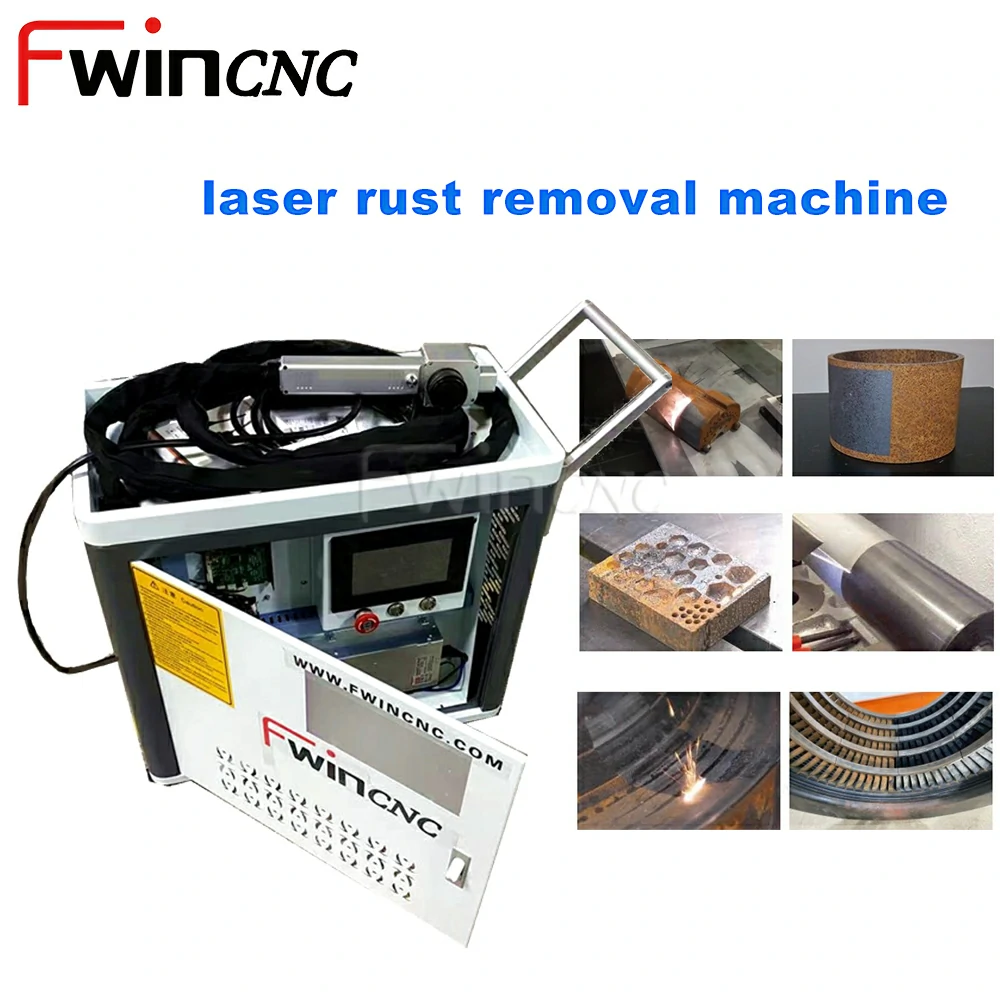

Fwincnc Portable Handheld Pulse Laser Cleaner Rust Removal 500W Customized Portable Cleaning Machine

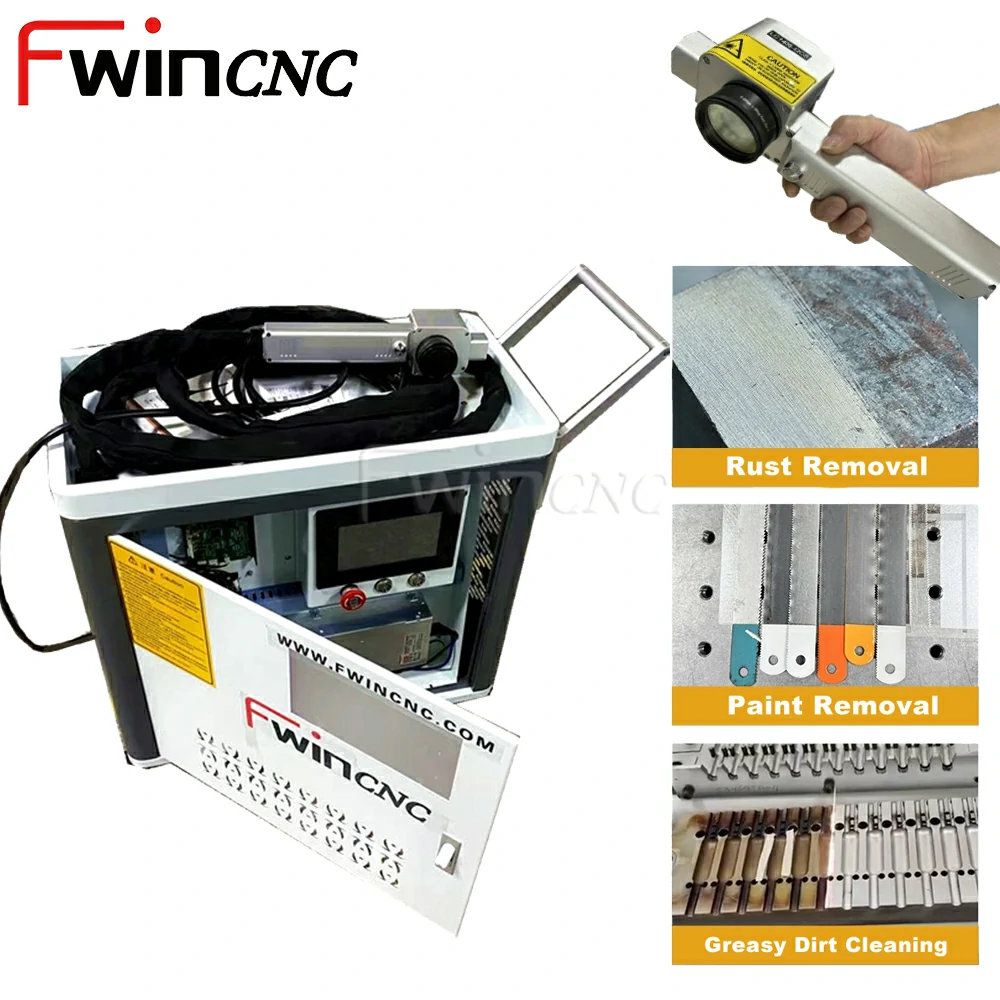

Fwincnc 300w pulse fiber handheld laser cleaning machine for paint and rust removal Laser cleaner system
Fwincnc Handheld Pulse Laser Cleaning Machine Paint Rust Oil Stains Removal 100W 200W laser cleaner Rust Removal
Fwincnc Portable Handheld Pulse Laser Cleaner Rust Removal 500W Customized Portable Cleaning Machine

Pulse Laser Cleaning Machine | Precision Pulsed Fiber Laser Cleaner

The Fwincnc pulse laser cleaning machine represents the absolute pinnacle of high-precision, non-contact surface restoration, offering an elite pulsed fiber system for sensitive substrates. Engineered to remove rust, paint, and oxides without generating thermal stress, this portable workstation serves as an agile, eco-friendly tool for aerospace, injection mold maintenance, and high-end automotive restoration.

  1. Zero Substrate Damage: This state-of-the-art pulse laser cleaning machine utilizes high-peak-power pulses to vaporize contaminants while leaving the underlying metal entirely untouched.
  2. Dynamic Beam Shaping: Features adjustable scanning widths up to $300\text{mm}$ with multiple geometry patterns (lines, circles, grids) to handle complex, contoured surfaces.
  3. Ultra-Short Laser Pulses: Operates with nanosecond-level pulse durations ($10\text{ns}$ to $100\text{ns}$), preventing heat accumulation and protecting delicate materials from warping.
  4. Chemical-Free & Eco-Friendly: Eradicates the need for hazardous solvents, media blasting, or abrasive grinding, lowering operating costs and improving workspace safety.
  5. Ergonomic Lightweight Design: Equipped with an ultra-lightweight handheld gun and a flexible $10\text{m}$ fiber cable for effortless on-site operation.
Products Categories
Get A Free Quote
Contact Form Demo (#3)

Pulse Laser Cleaning Machine Description

By transmitting the laser through fiber optics, it enables long- distance cleaning and reached parts that traditional mehods cannot access.

This technology can be utilized in hazardous environments to ensure the safety of personnel.

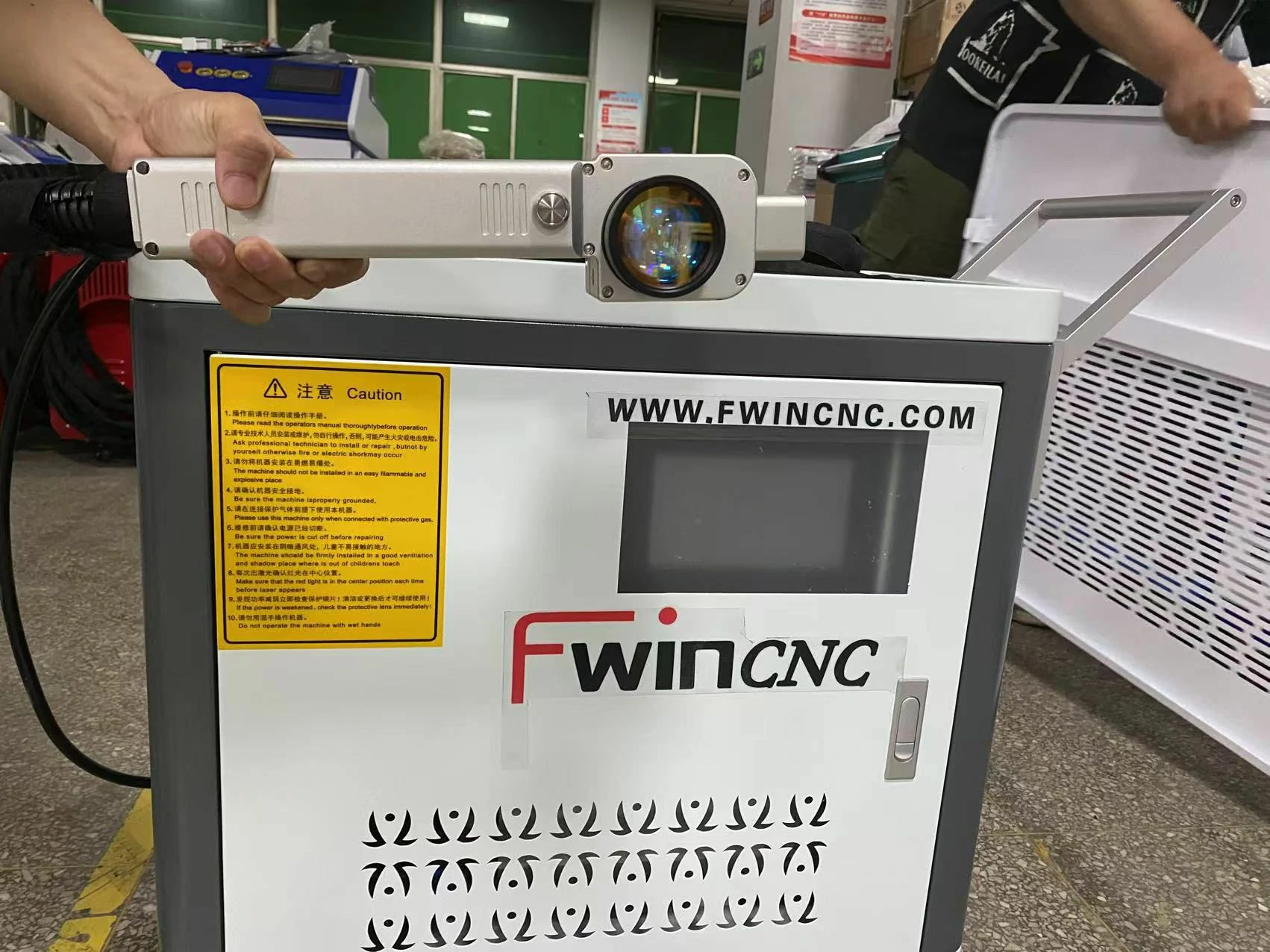

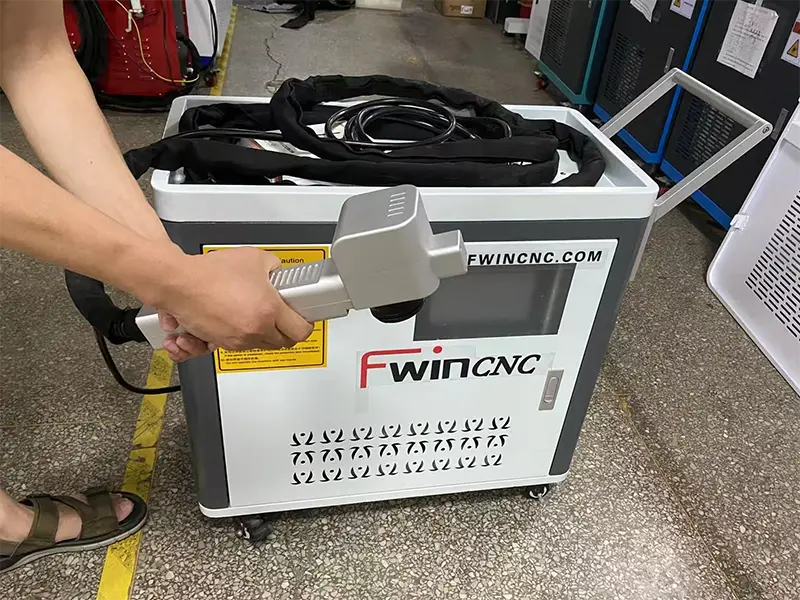

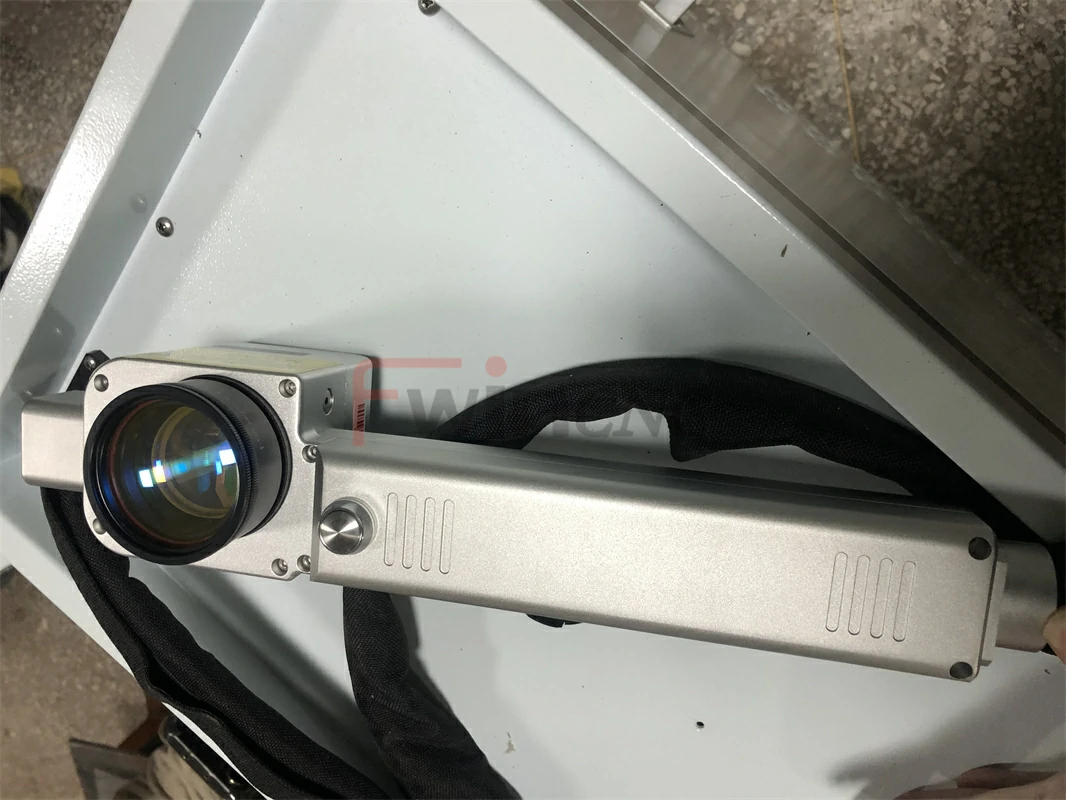

Lightweight ergonomic handheld pulse laser cleaning gun with adjustable scanning width

Laser cleaning effectively eliminates a wide range of contaminants form different material surface, providing a superior level of clwanliness compared to conventional methods.

Additionally, it has the ability to selectively clean material surfaces without acusing and damage.

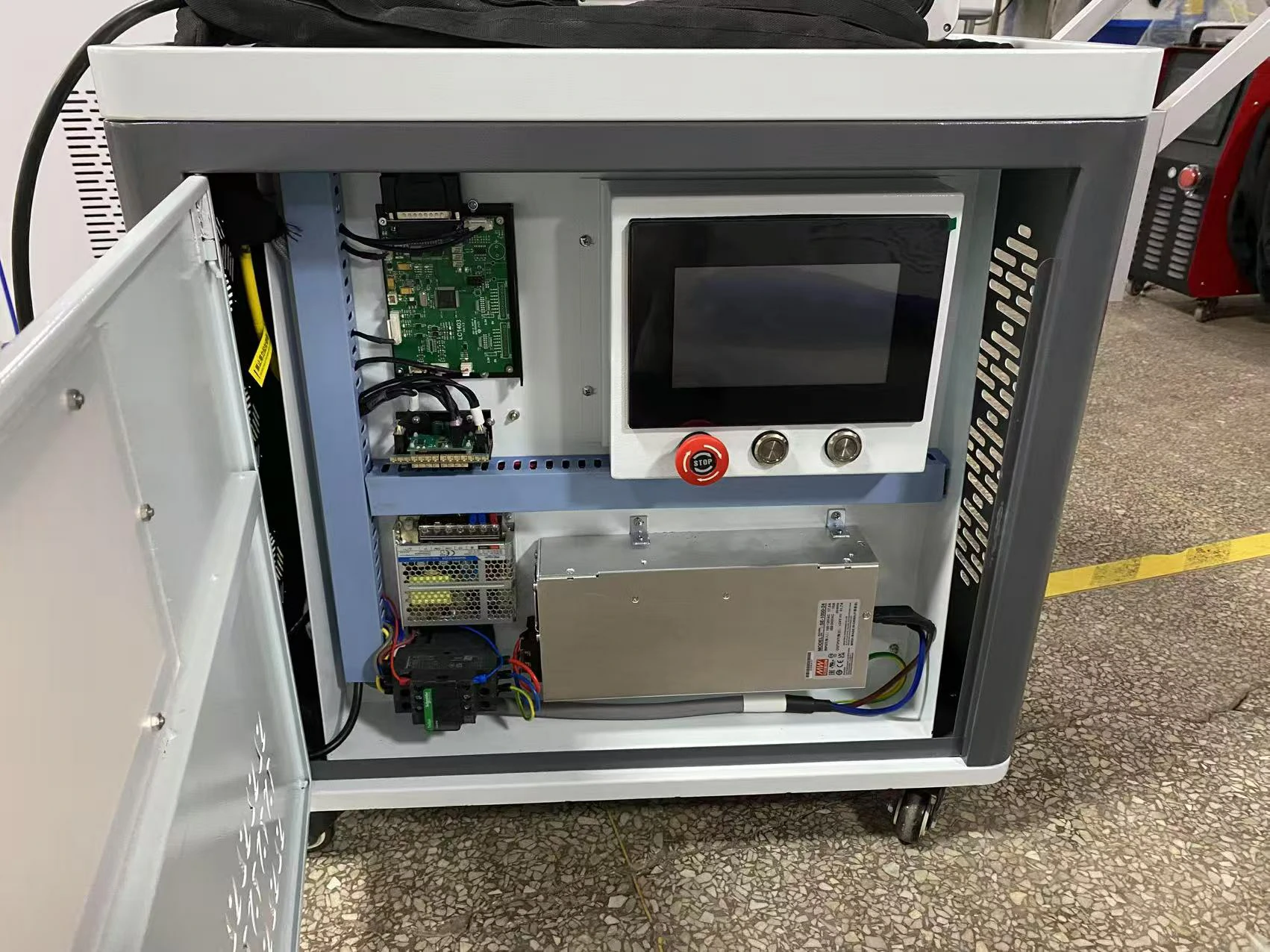

Pulse laser cleaning machine accessories and their configuration:

Item Specification Unit Quantity
Cabinet Backpack/Luggage/Pull-rod/

Cabinet/Standard

Set 1
Laser source MAX/JPT

100w/200w/300w

Set 1
Power MEAN WELL power Set 1
Laser cleaning galvanometer Sino-Galvo

LC1410D-V-QCS

Set 1
Galvo scanning system ZBTK Set 1
Water chiller Industrial water chiller 50HZ(2P) Set 1
Pulse Laser Cleaning Mahcine Data Sheet

No. Continous style laser generator

Pulse laser cleaning

1 Laser source MAX BRAND SOURCE(100%NEW)OR RAYCUS SOURCE
2 Laser power PULSE 100W/200W
3 Cleaning gun/laser gun ALLWIN CUSTOMIZED
4 Water chiller INDUSTRIAL WATER CHILLER 50HZ(2P)
5 Laser wave length 1080 NM
6 Fiber Length 4.5 M
7 Laser Pulse Frequency 1-20 HZ
8 Pulse Width 0.1-20 MS
9 Adjusted spot range 0.1-3 MM
10 Minimum Welding pool 0.1 MM
11 Working Voltage 1 PHRASE 220V ±10%
12 Package size(L*W*H) 50 cmX35 cmX40 cm
13 Gross weight 12 KGS

Pulse Laser Cleaning machine 200W/300W parameter

No. continous style laser generator  Cleaning
1 LASER SOURCE MAX BRAND SOURCE(100%NEW)
2 LASER POWER 200W/300W
3 CLEANING GUN/laser gun ALLWIN CUSTOMIZED
4 WATER CHILLER INDUSTRIAL WATER CHILLER 50HZ(2P)
5 LASER WAVE LENGTH 1080NM
6 Fiber Length   4.5M
7 Laser Pulse Frequency 1-20HZ
8 Pulse Width 0.1-20ms
9 Adjusted spot range 0.1-3mm
10 Minimum Welding pool 0.1mm
11 Working Voltage 3PHRASE 380V ±10%
12 Package size(L*W*H) 82cm*51cm*92cm
13 Gross weight 64.12KGS



Pulse laser cleaning machine Styles

Type 1 Laser power Machine Style Packing Info Cooling type


Backpack pulse cleaning machine

100W/200W

MAX 100W

single cleaning mode air cooling

JPT 100W single cleaning mode air cooling

JPT 200W single cleaning mode air cooling



System:

ZBTK



Gross Weight:

100W-33KG

200W-35KG



Packing size:

710*360*640mm

Wooden package

Air cooling



Type 2 Laser power Machine Style Packing info Cooling type




Luggage

pulse laser cleaning machine

100W/200W/300W MAX 100W single cleaning mode air cooling System:

ZBTK



Gross Weight:

100W-33KG

200W-35KG



Packing size:

200W/300W:

610*430*970mm

300W MAX:

610*430*1020mm

Wooden package

Air cooling
Luggage pulse laser cleaning machine appearance MAX 200W single cleaning mode air cooling
MAX 300W single cleaning mode air cooling
JPT 100W single cleaning mode air cooling
JPT 200W single cleaning mode air cooling
JPT 300W single cleaning mode air cooling



Type 3 Laser power Machine Style Packing info Cooling type




Mini pull-rod

pulse laser cleaning machine

100W/200W MAX 100W single cleaning mode air cooling System:

ZBTK



Gross Weight:

100W-43KG

200W-47KG



Packing size:

740*390*660mm

Wooden package

Air cooling
Mini pull-rod pulse laser cleaning machine appearance JPT 100W single cleaning mode air cooling
JPT 200W single cleaning mode air cooling



Type 4 Laser power Machine Style Packing info Cooling type




Mini cabinet

pulse laser cleaning machine

100W/200W/300W MAX 100W single cleaning mode air cooling System:

ZBTK



Gross Weight:

200W-60KG

300W-80KG



200W/300W

packing size:

720*450*1015mm

Wooden package

Air cooling
Mini cabinet pulse laser cleaning machine appearance MAX 200W single cleaning mode air cooling
MAX 300W single cleaning mode air cooling
JPT 100W single cleaning mode air cooling
JPT 200W single cleaning mode air cooling
  JPT 300W single cleaning mode air cooling



Type 5 Laser power Machine Style Packing info Cooling type




Standard

pulse laser cleaning machine

500W

Standard pulse laser cleaning machine appearance

MAX 500W single cleaning mode air cooling





System:

ZBTK



Gross Weight:

170KG



packing size:

1010*640*1260mm

Wooden package

Air cooling
Laser Rust Cleaning Machine Video

Pulse Laser Cleaning Machine Applications

Pulse laser cleaning machines have a wide range of applications across various industries due to their effectiveness in removing contaminants, coatings, and unwanted layers from different types of substrates. Some common applications include:

Industrial Manufacturing:
Pulse laser cleaning machines are normal used to remove oil, dust, coatings and other pollutants on the surface of parts.

Suitable for automotive Industry, electronics manufacturing, historical Restoration and etc.

Automobile industry:
Use laser cleaning technology to clean the paint surface, dirt and grease of the exterior of the car, parts and engines, without damaging the substrate.

Electronics Manufacturing: Pulse laser cleaning is used for removing oxides, residues, and coatings from electronic components, PCBs (Printed Circuit Boards), and semiconductor wafers to enhance conductivity and reliability.



Historical Restoration:

Artwork and Cultural Artifacts: Pulse laser cleaning is utilized for restoring historical artifacts, sculptures, statues, and artwork by gently removing dirt, grime, coatings, and corrosion without damaging the underlying substrate.



Aerospace and Aviation:

Aircraft Maintenance: Pulse laser cleaning machines are employed for cleaning aircraft components, engine parts, turbine blades, and surfaces to remove contaminants, carbon deposits, and coatings while avoiding damage to critical aerospace materials.

Spacecraft Components: Pulse lasers are used for cleaning sensitive components and surfaces in spacecraft manufacturing and maintenance to ensure optimal performance and reliability in harsh space environments.



Precision Engineering and Optics:

Optical Components: Pulse laser cleaning is applied in the manufacturing of lenses, mirrors, prisms, and optical fibers to remove coatings, residues, and contaminants, ensuring high optical clarity and performance.

Semiconductor Fabrication: Pulse lasers are used for cleaning precision components and semiconductor wafers during manufacturing processes to maintain cleanliness and quality standards in microelectronics production.



Marine Industry:

Ship Maintenance: Pulse laser cleaning machines are used for removing marine fouling, rust, and coatings from ship hulls, propellers, and underwater structures, improving fuel efficiency and prolonging the lifespan of maritime assets.



Nuclear Decontamination:

Nuclear Facilities: Pulse laser cleaning technology is utilized for decontaminating surfaces and equipment in nuclear power plants, research facilities, and radioactive waste management, minimizing radiation exposure risks and maintaining operational safety.

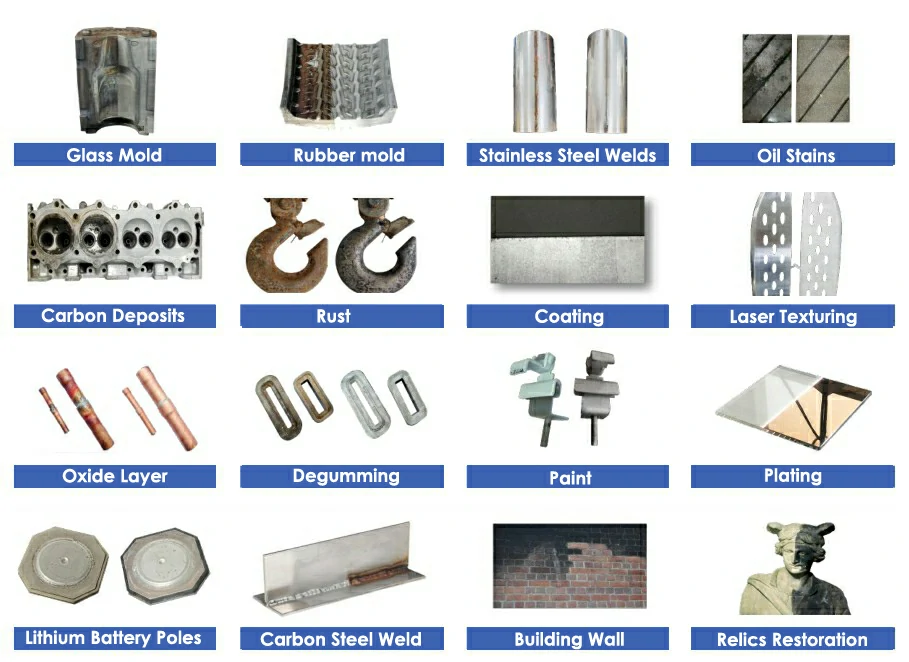

fwincnc pulse laser cleaning machine application sample

Overall, pulse laser cleaning machines offer versatile solutions for cleaning and surface preparation in various industries, providing efficient, precise, and environmentally friendly methods for substrate maintenance and restoration.

Handheld Automated Laser Cleaning Machine Detail Display
WHAT MATERIALS CAN BE CLEANED WITH A LASER?

Laser cleaning equipment is primarily utilized for eliminating impurities from metal surface. This technique is effective in removing rust, varnish, paint, organic substances, oils, soot, and other contaminants. moreover, this technology has proven successful in cleaning plastic, stone, cermaic, and concrete materials.

By employing a lser-cleaning machine, one can effectively process a range of items such as small components like terminals, connectors, boards, wores and anilox. The laser is capable of removing insulative layers up to 1 mm thick. Additionally, it can be used to clean valuable items like jewekry, precious stones, coins, and archarological artifacts.

Furthermore, laser cleaning can be applied to automobile aprts such as engines and body components. It is also suitable for cleaning large parts of various equipment, including planes, rockets, military equipment, oil producation and refinery equipment, and more.

Pulse laser cleaner VS Traditional cleaning methods

Traditional industrial cleaning:1. Mechanical friction

2. Chemical corrosion

3. Sandblasting

High energy consumption, high pollution, low efficiency, and high labor costs.

Laser pulse cleaning:Consumable free, low pollution, high efficiency, precise and controllable, without damaging the substrate.

Pulse laser cleaning machines not only can protect the material from damage, but aslo can save your labor cost, faster for better cleaning results.
