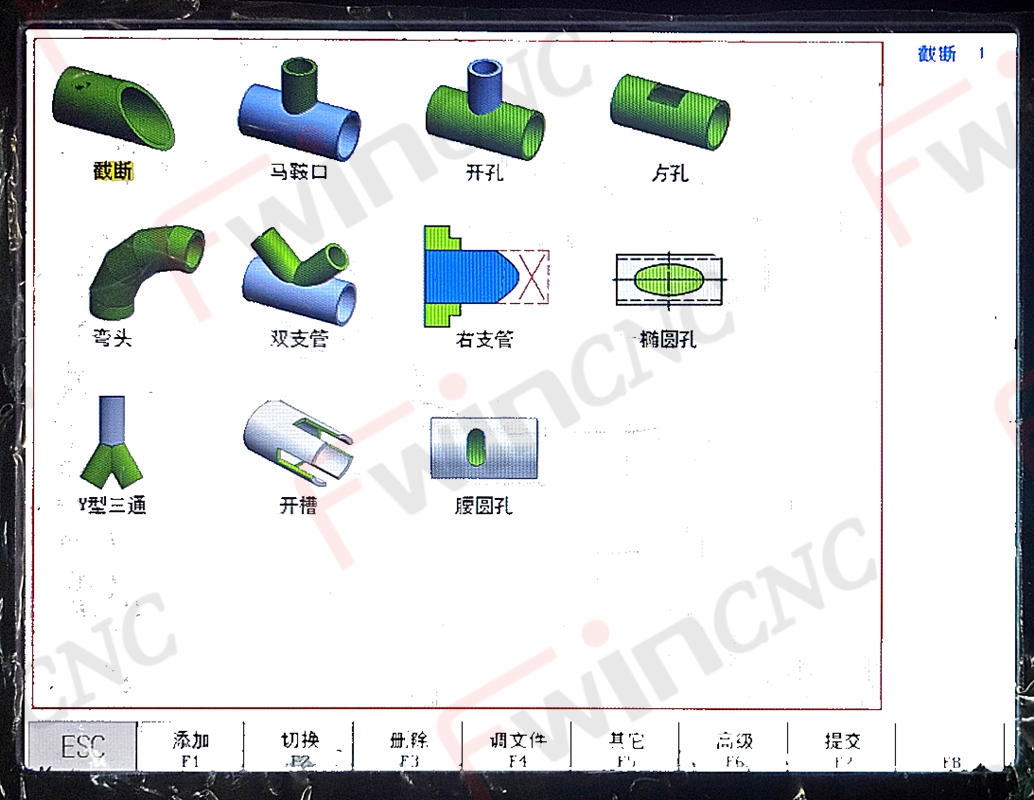

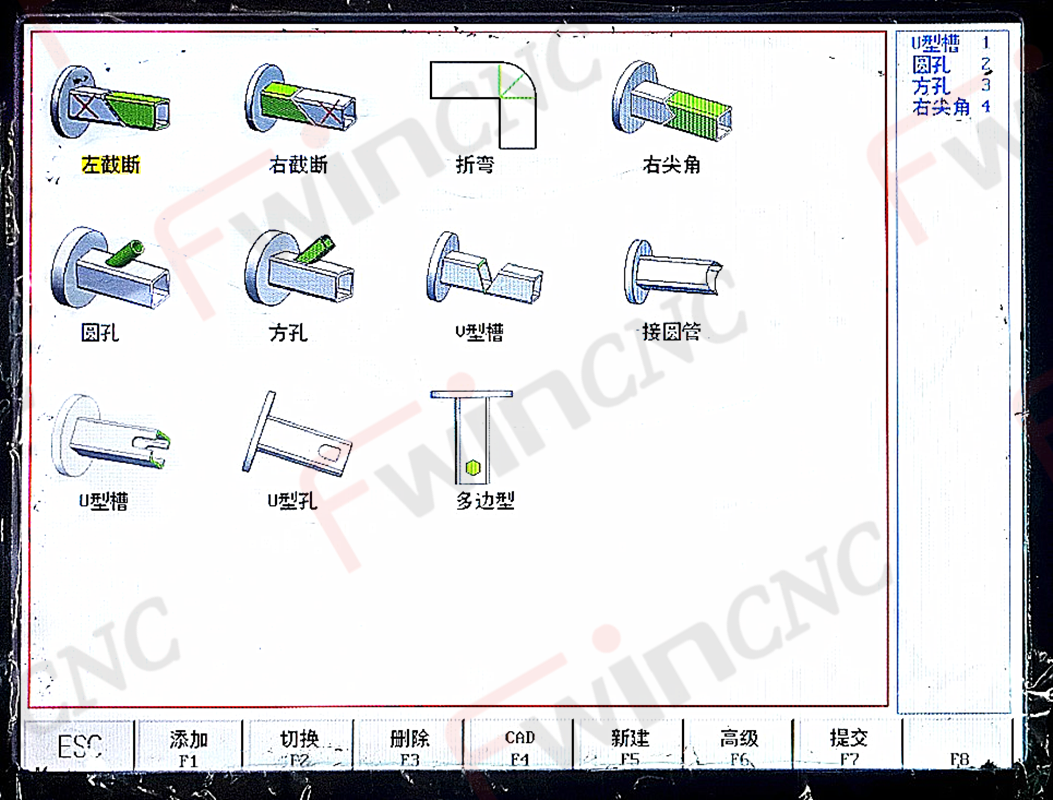

The form of the cuttable parent pipe intersecting line holes or branch pipe intersecting line nodes is as follows:
Showing Slide 1 of 3

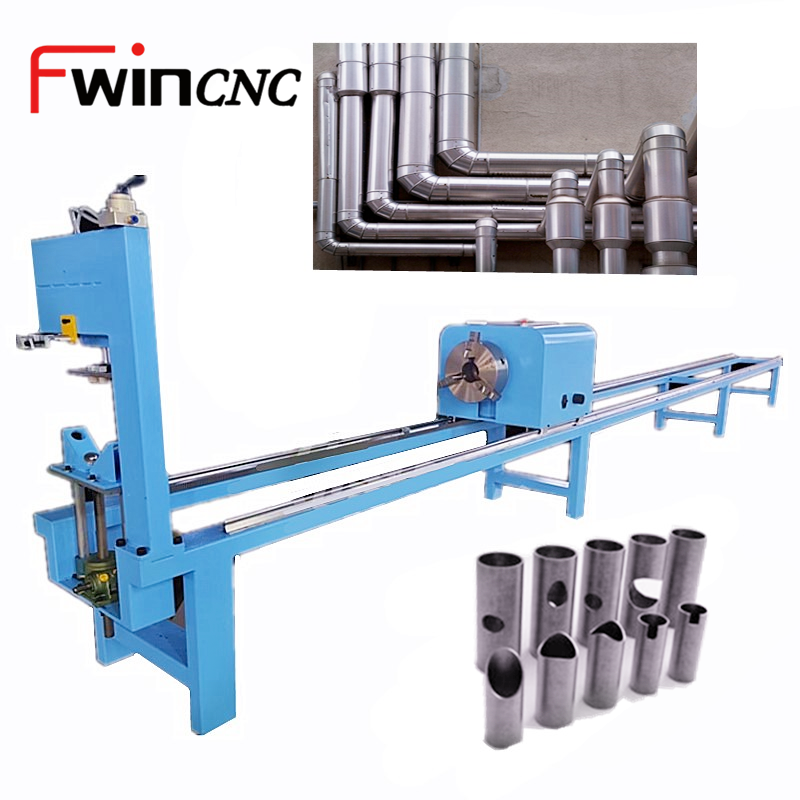

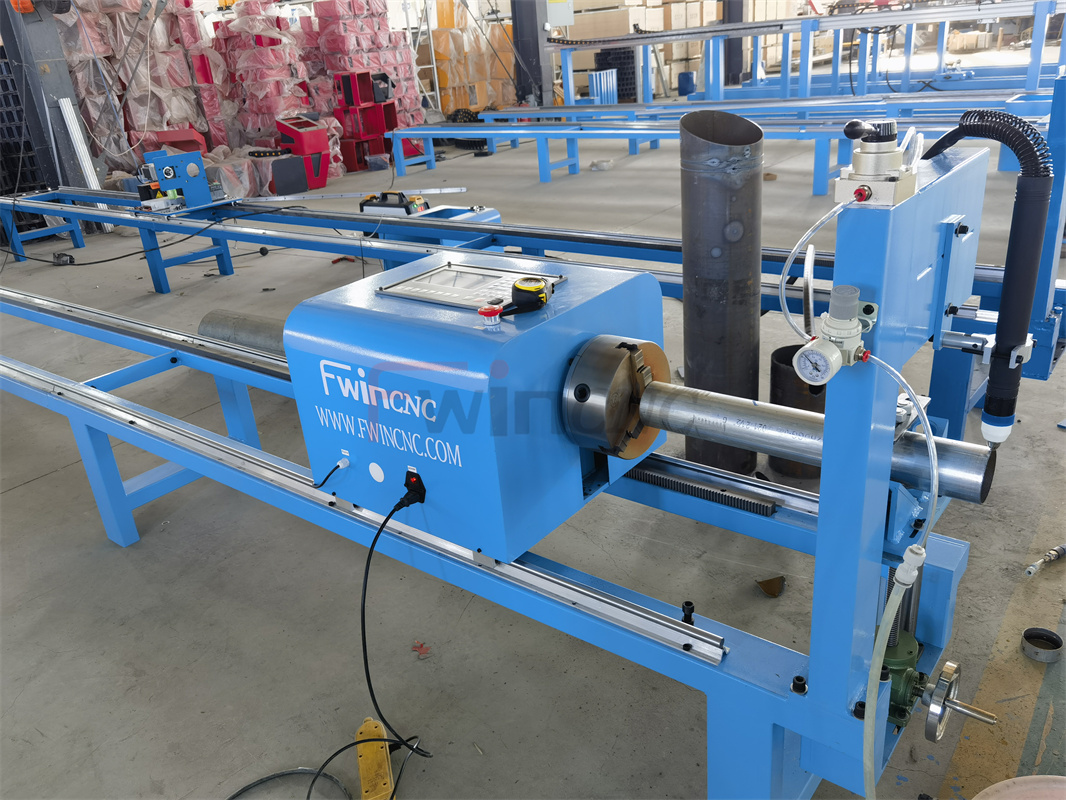

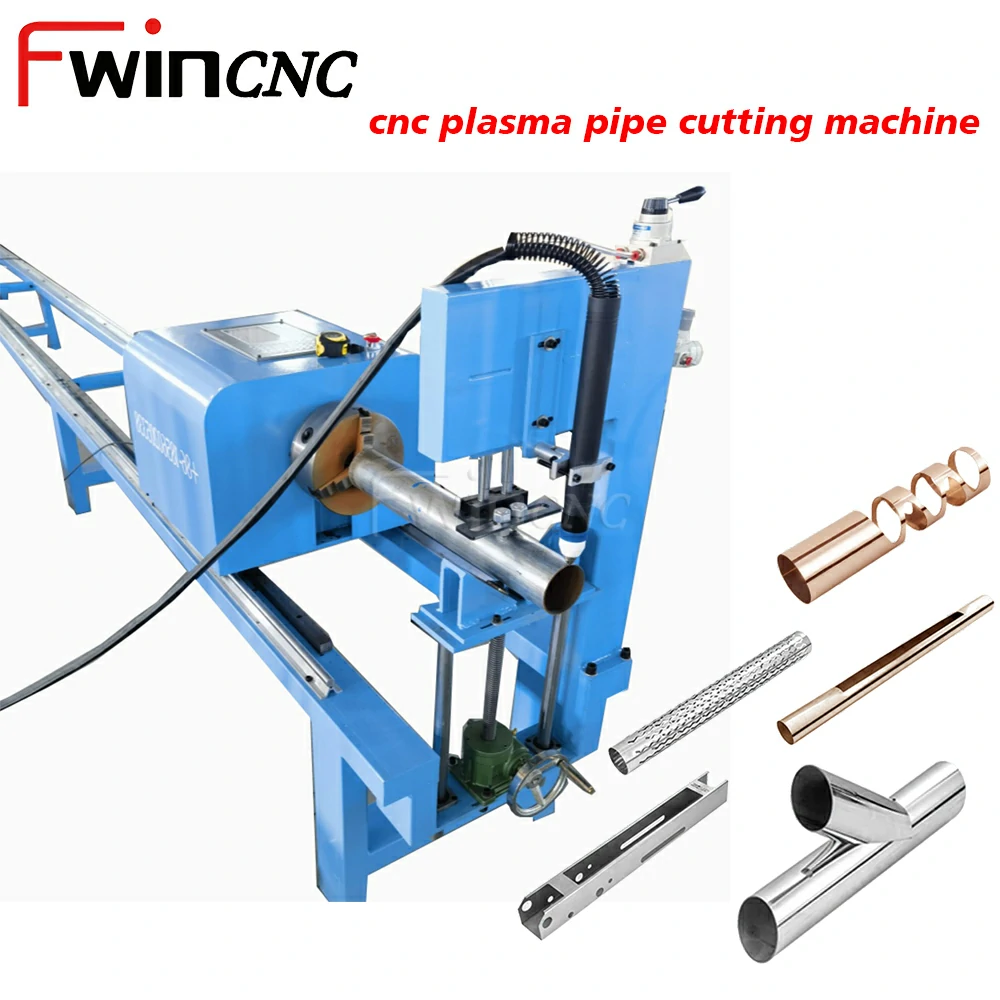

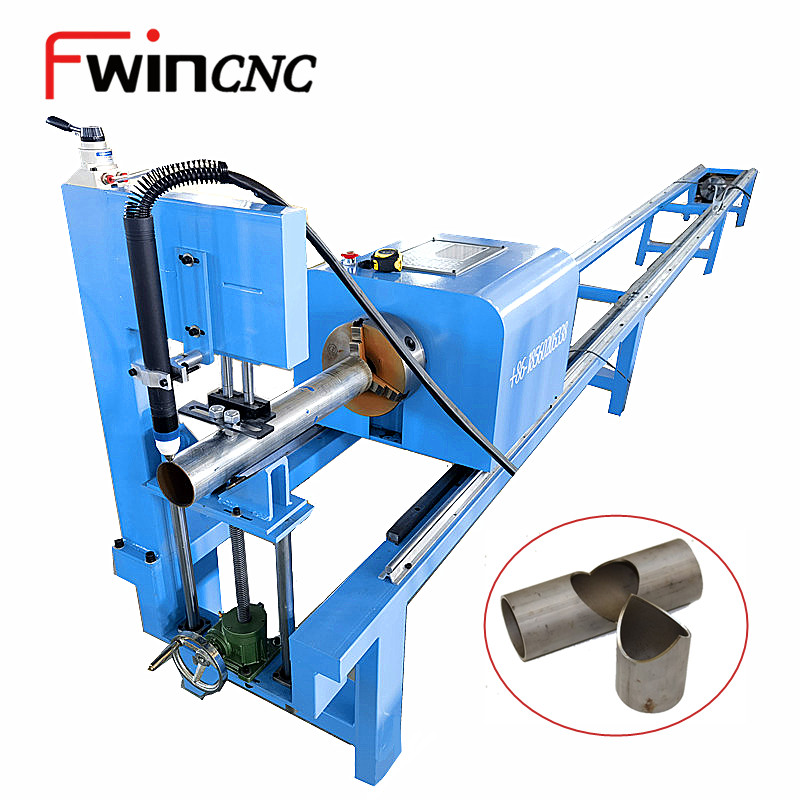

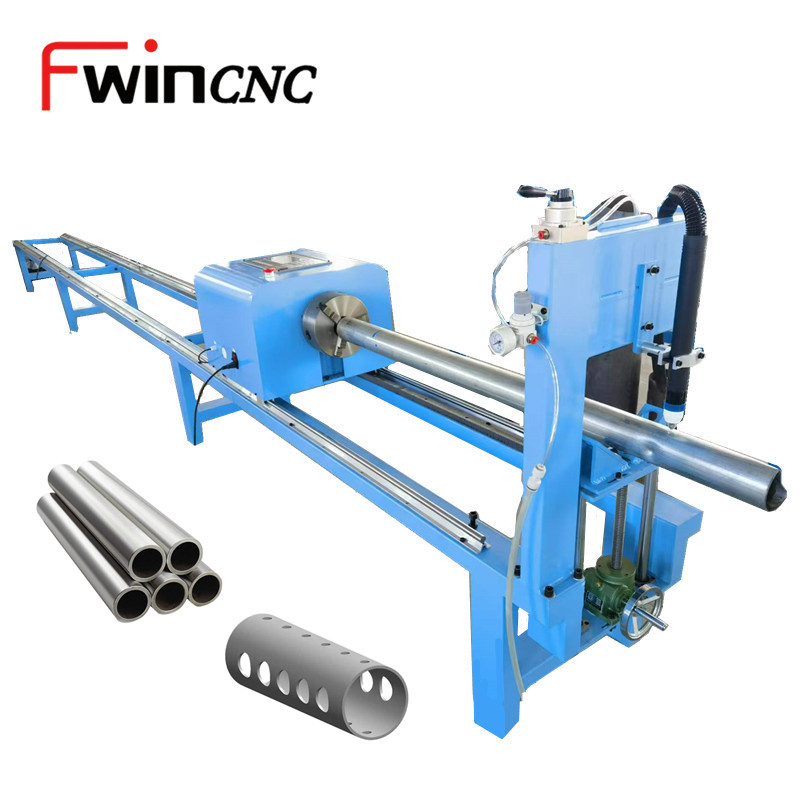

Pushing Metal Round Pipe Tube Plasma Cutting Machine for Stair Handrail 6m

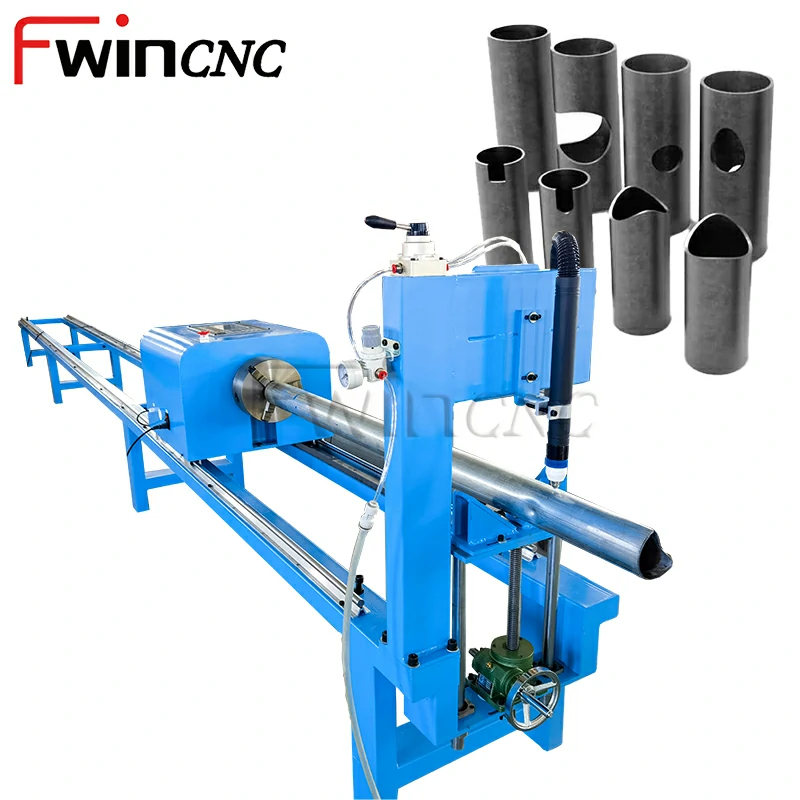

The Metal Round Pipe Tube plasma cutting machine is suitable for cutting cylindrical orthogonal, oblique, eccentric and other inertia holes, as well as oval holes on all kinds of tubes, and can cut coherent inertia lines.
The machine is widely used in the production of metal structural parts, electric power equipment, boiler industry, petroleum, chemical industry and other industrial sectors.
1、Can cut a number of different directions, different diameters of cylindrical coherent line holes in the main pipe to meet the branch pipe axis and the main pipe
Eccentric and non-eccentric orthogonal and oblique intersection of branch pipe axis and main pipe axis.
2、Can cut the coherent line end at the end of the branch pipe to meet the conditions of vertical intersection and inclined intersection between the axis of the branch pipe and the axis of the main pipe with eccentricity and non-eccentricity.
Intersection, inclined intersection conditions.
3、Able to cut oblique section end face on round pipe end.
4、Can cut welded elbow on the round pipe, “shrimp section” at both ends of the diagonal section.
5、Able to cut the coherent end of the branch pipe intersecting with the ring main pipe.
6、 Can cut square holes, waist-shaped holes, oval holes in the middle of the round pipe (square holes and waist-shaped holes can be with rounded corners).
7、Able to carry out steel pipe truncation.
8、Can groove the end of the pipe.
9、Able to make two-way, three-way and other pipe joints.
Products Categories
Get A Free Quote
Round Pipe Tube Plasma Cutting Description
Elevating Production with the Round Pipe Cutting Machine and the CNC Round Tube Plasma Cutter
Every Fwincnc Round Pipe Cutting Machine is engineered to eliminate fabrication bottlenecks. Traditional workshops spend hours on manual layout, but this CNC Round Tube Plasma Cutter automates the entire sequence.
Unmatched Precision of the Industrial Rotary Pipe Cutting Tool and Automatic Pipe Intersecting Line Cutter
By deploying an Industrial Rotary Pipe Cutting Tool, you gain the ability to process heavy-walled tubes. The Automatic Pipe Intersecting Line Cutter software calculates intersections instantly, ensuring perfect fit-up.
Advanced Automation via Professional Tube Profiling Equipment and the Heavy-Duty Round Tube Cutting Workstation
This Professional Tube Profiling Equipment streamlines complex tasks like saddle and miter cuts. Using our Heavy-Duty Round Tube Cutting Workstation reduces labor hours by up to $70\%$.
High-Performance Kinematics of the CNC Round Pipe Profiling System and High-Efficiency Pipe Beveling Machine
The synchronized motion of this CNC Round Pipe Profiling System maintains accuracy on long profiles. Furthermore, the built-in High-Efficiency Pipe Beveling Machine prepares edges for welding in one step.
Industrial Durability with Automated Round Pipe Processing Machinery and the Reliable Rotary Chuck Plasma Cutter
Investing in this Automated Round Pipe Processing Machinery secures high productivity. Trust this Reliable Rotary Chuck Plasma Cutter to future-proof your heavy steel fabrication line.
Round Pipe Tube Plasma Cutting Machine Parameter
| No. | function | For light weight pipe | ||
| 1 | metal pipe | Round pipe diameter 50mm-219mm | ||
| 2 | Pipe length | 6000mm | ||
| 3 | Cutting Mode | Plasma | ||
| 4 | Rotary attachment | chuck diameter 200mm-1pcs | ||
| 5 | Driving and motor | stepper motor | ||
| 6 | loading capacity | 240kgs | ||
| 7 | lifting method | manual | ||
| 8 | Controller system | one set of startfire | ||
| 9 | Height controller | startfire 2100 | ||
| 10 | rotation speed | 0.1-25r/min | ||
| 11 | position accuracy | ±0.1mm | ||
| 12 | cutting speed | 100~6000mm/min | ||
| 13 | Attached design | 11 cutting patterns | ||
| 14 | input power | 220±10%V AC50HZ/60HZ | ||
| 15 | cutting design | photo showing | ||
| 16 | tramsmission method | USB | ||
| Software | for option | |||
| 18 | Electrical components | CHINT | ||
Tube Plasma Cutting Machine

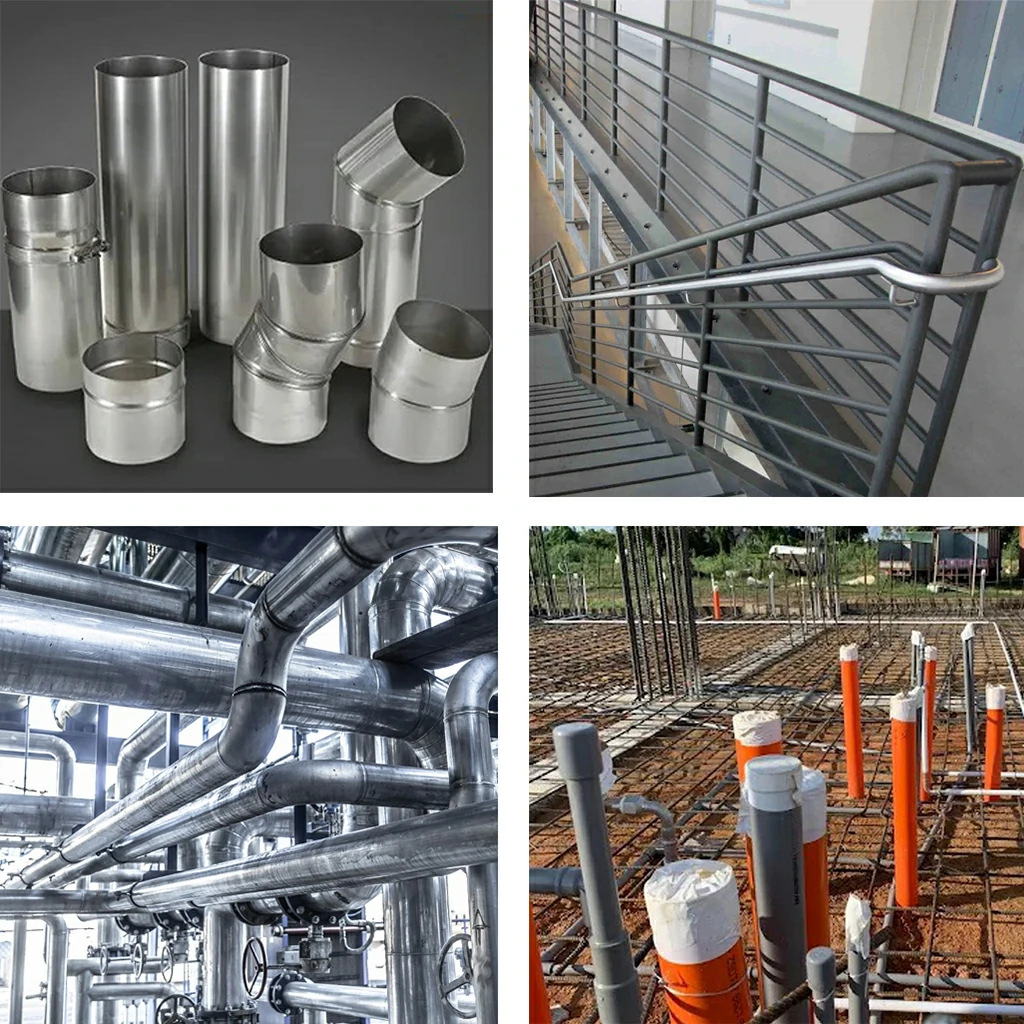

Round Pipe cutting machine Application
Round Pipe cutting machine Application
- Construction and Infrastructure:Essential for cutting pipes and structural components for bridges, towers, and building frameworks.
- Manufacturing:Used in the production of chassis, cabinets, electrical components, and various metal parts for machinery and furniture.
- Automotive Industry:Ideal for cutting exhaust systems, pipes for radiators, and other vehicle components.
- Shipbuilding:Utilized for cutting pipes for cooling systems, fuel lines, and other structural components in large vessels.
- Food and Beverage:Applies to manufacturing stainless steel pipes for plumbing, food processing equipment, and kitchen utensils.

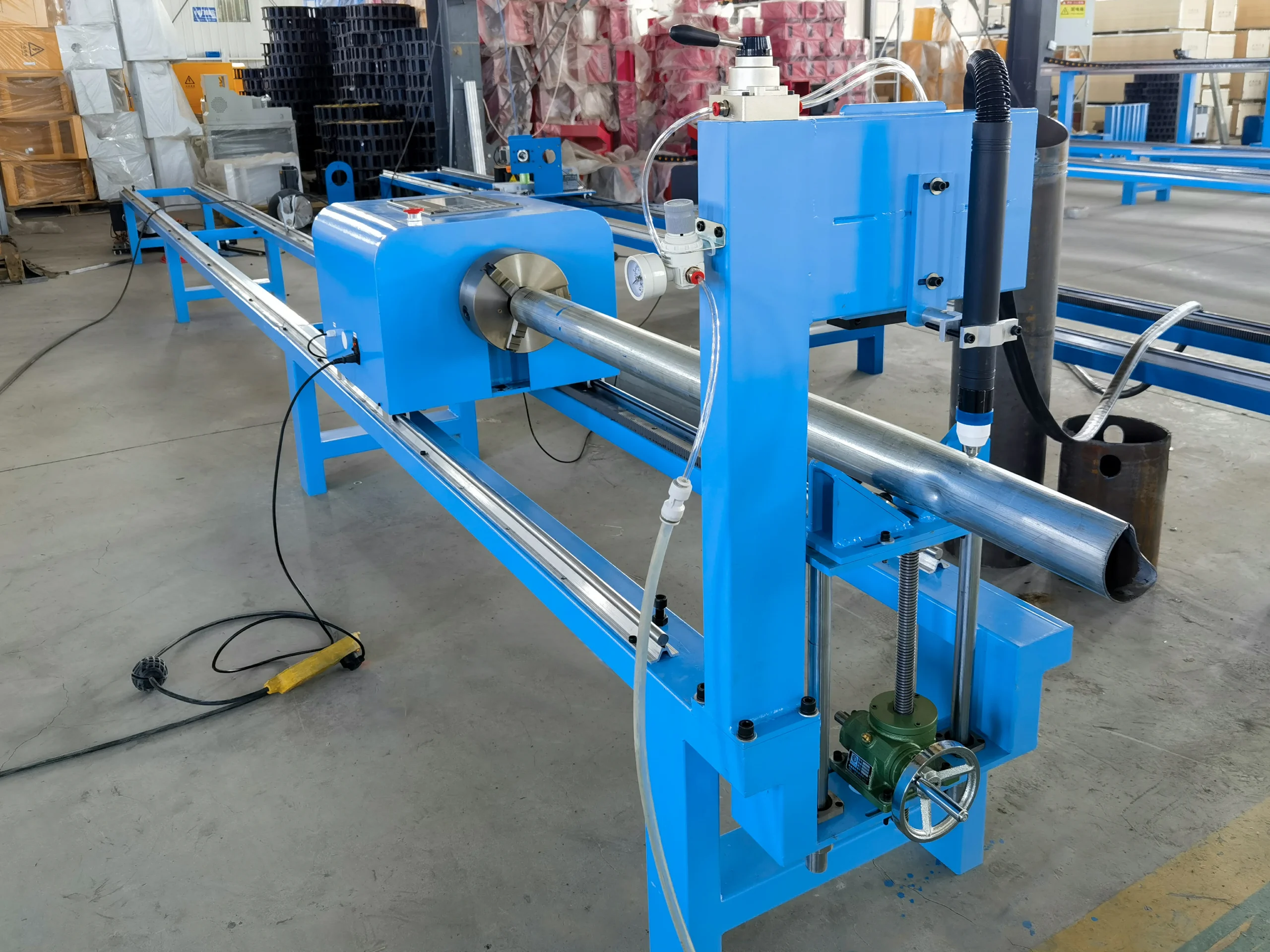

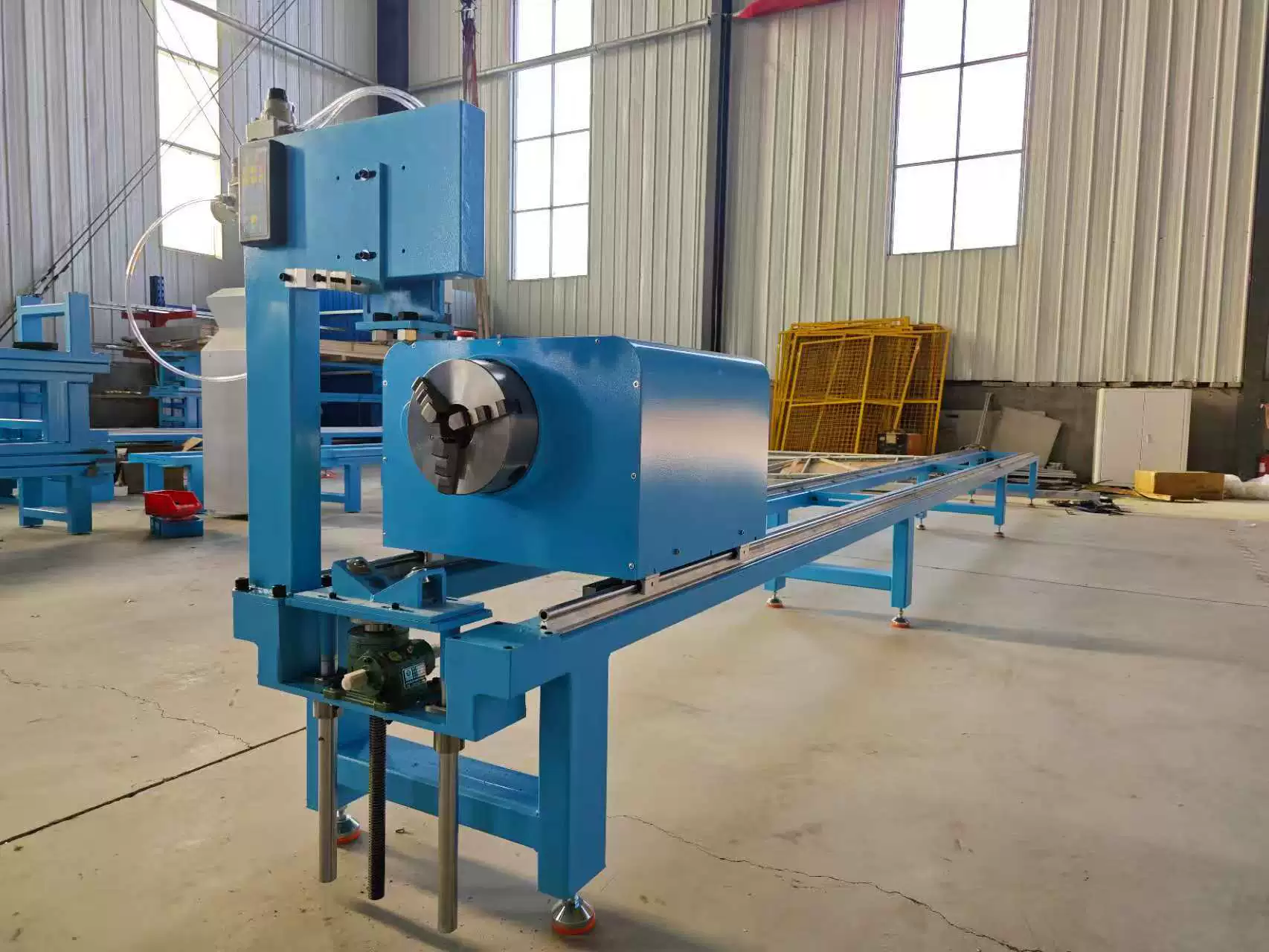

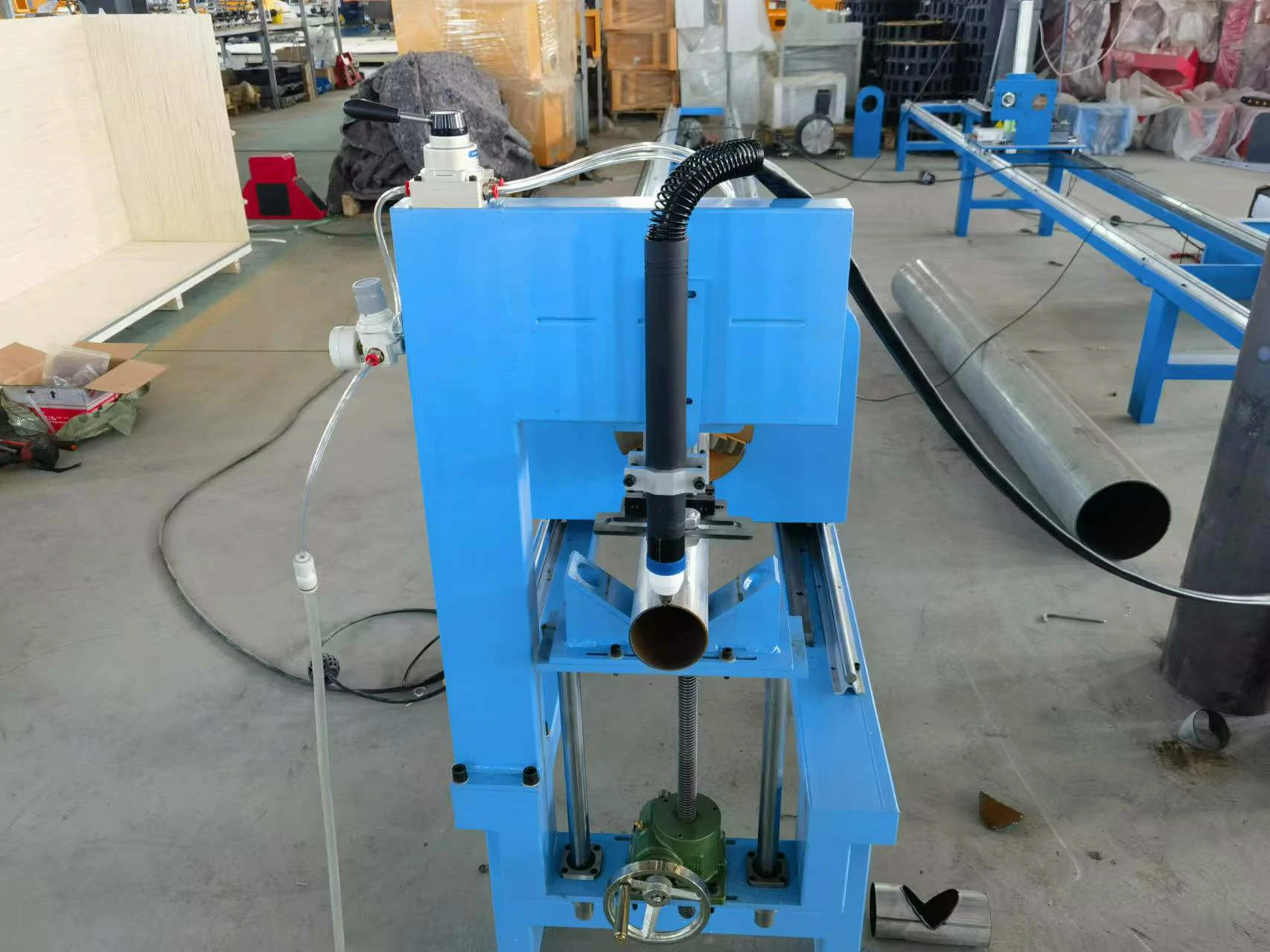

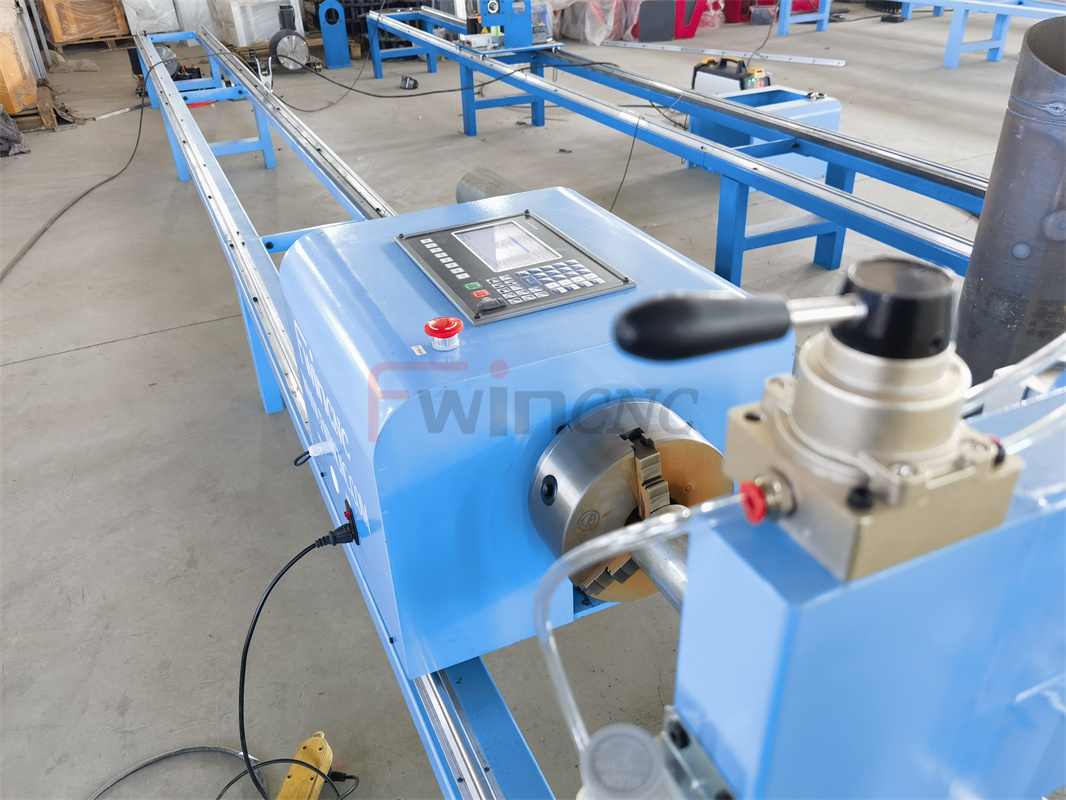

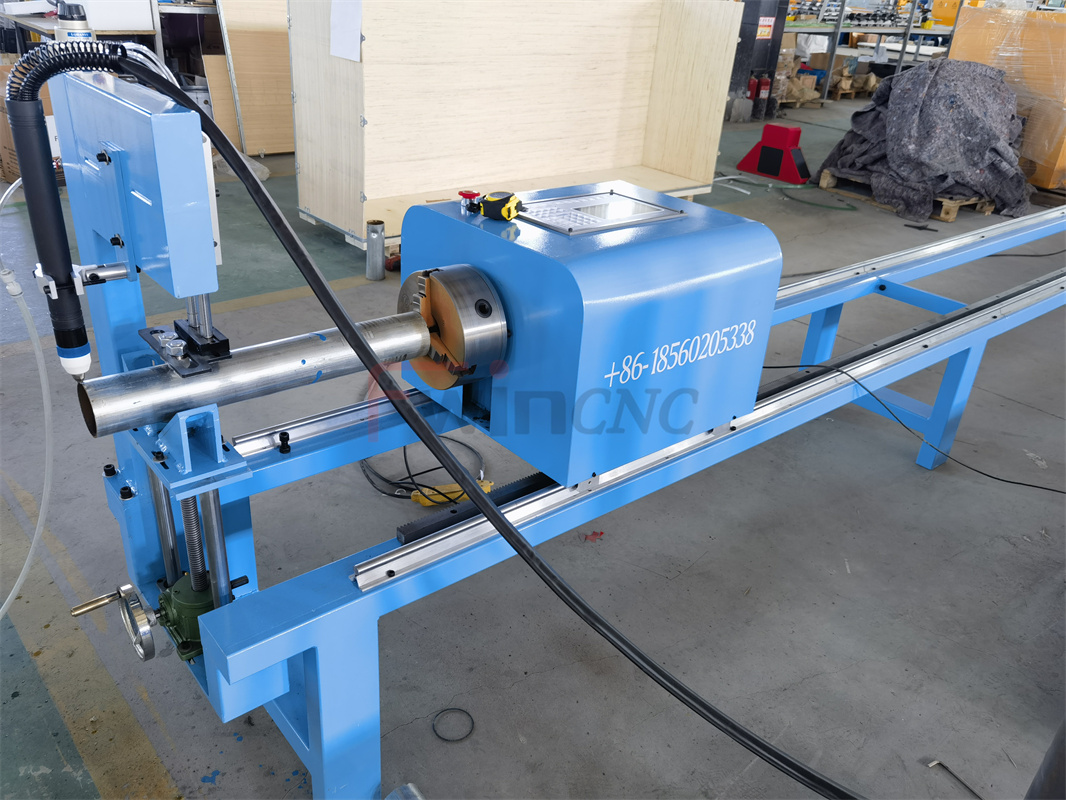

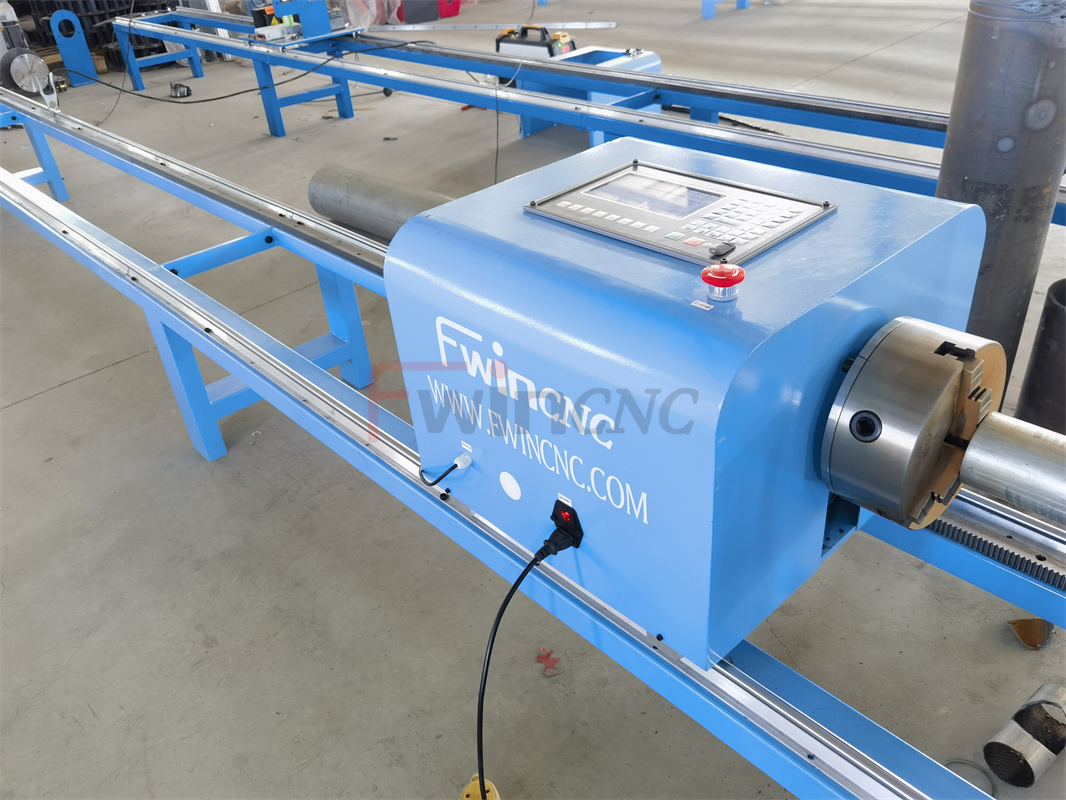

Metal Round Pipe Tube Plasma Cutting Machine Detail Display
Plasma Tube Coping Machine CNC Pipe Profile Plasma Cutter
Structure:
Composed by moving frame, power rotating head and cutting class. The running rail is balanced with the rail support by moving the frame so as to improve the cutting accuracy of the machine. The rotating power head is driven up and down by the chuck and the cutting head rotates in reverse to cut the pipe, which can be deflected axially and radially. The movement of multiple axes is controlled by a linkage system to finally cut the pipe.
Rotating pipe end cutting machine structure:
The equipment system is composed of two intersecting cutting machines, three electric trolleys positioned by moving pipe supports, two mobile material car sections, and two width guide rails.
Improved our Tube Plasma Cutting Machine Compared with the traditional CNC coherent line cutting machine, the rotatable pipe end automatic cutting machine has greatly improved both the cutting capacity and the cutting quality, but there is the phenomenon of low equipment utilization in the actual operation.

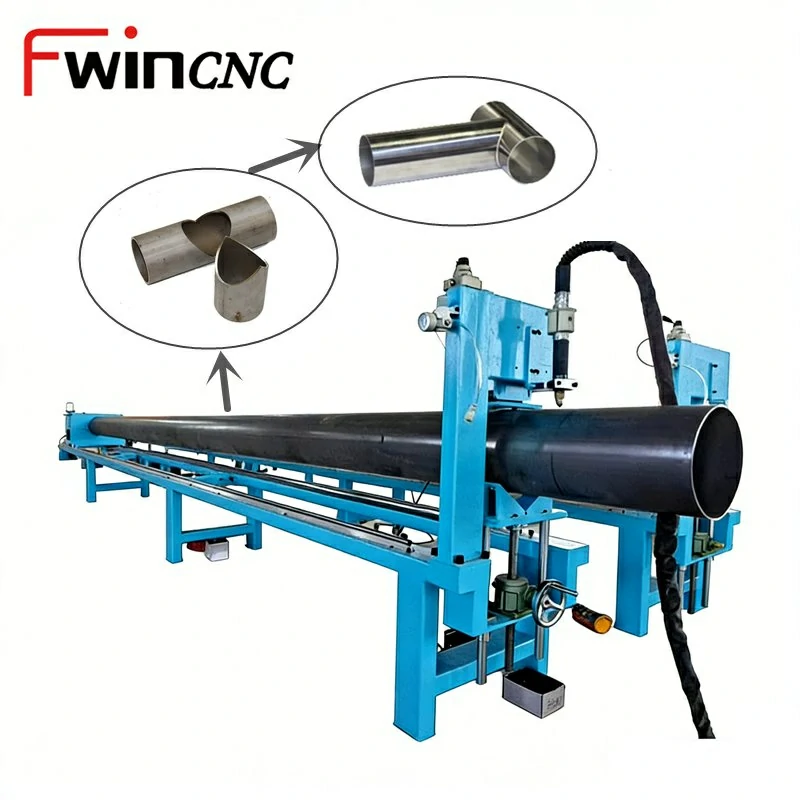

Metal pipe cutting machine is for pipe cutter,a pipe intersection Plasma Cutting Machine (also called Plasma Tube Coping Machine or CNC Plasma Pipe Cutter) is an advanced automated system designed for precision cutting of intersecting profiles (e.g., tubes, pipes, and structural beams).
It combines plasma cutting technology with multi-axis CNC control to achieve high-accuracy bevels and complex joint preparations.
The application includes structural steel & construction,oil,gas&energy,shipbuidling and marine,heavy machinery and transportation,power and telecom towers.
In order to solve this problem, you can increase the corresponding tire rotation support function, thus ensuring that a cutting device corresponds to two supports, cutting is independent of each other, can be in different poles at the same time cutting work, greatly improving the cutting efficiency. Improve the utilization rate of the equipment.
