Customized Metal Pipe Cutting Machines – Plasma & Fiber Laser
We offer high-precision metal pipe cutting machines, available in plasma and fiber laser types. Capable of cutting round pipes, square pipes, H-beams, I-beams, and angle steels, they meet both intricate and heavy-duty cutting needs.
Whether it’s a precise round hole for a kitchen filter or a structural cut for beams, our machines deliver accuracy, efficiency, and reliability.
Metal Round Square Pipe Cutting Machine Series
Plasma Pipe Cutting Machines
-
Standard Portable Plasma Pipe Cutter – Ideal for cutting and punching round or square pipes.
-
Automatic Push-Type Plasma Cutter – Automatically feeds and pushes pipes for continuous cutting efficiency.
-
5-Axis Bevel Plasma Cutter – Supports angled (bevel) cuts for precise pipe preparation in heavy-duty applications.
Fiber Laser Pipe Cutting Machines
-
Portable Laser Pipe Cutter – Cuts round, square, and rectangular pipes with high precision; suitable for small workshops.
-
Standard Laser Pipe Cutter – Handles round, square, rectangular pipes as well as H-beams and angle steels; supports advanced production requirements.
FWINCNC pipe cutting machines provide accurate, efficient, and reliable solutions for industries including shipbuilding, heavy machinery, construction, automotive, and aerospace, offering flexibility to meet diverse production needs.

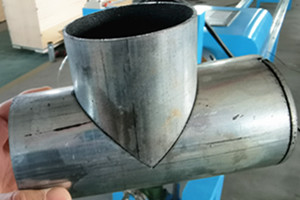

Cut up to 500 mm (19.69 inches) in diameter.
Ideal for thin-walled tubing to heavy industrial profiles.

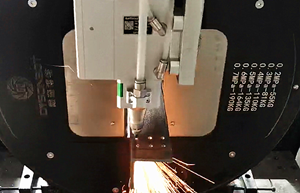

Lightning-fast cutting speed
Fast cutting speeds will boost your production line with shorter part times.

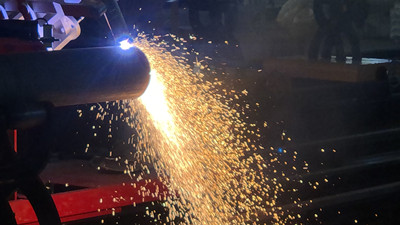

Superior cutting power
Handle everything from brass to galvanized steel with ease.
Extensive bevel cutting
Achieve high-angle bevel cutting without slippage or inaccuracy.

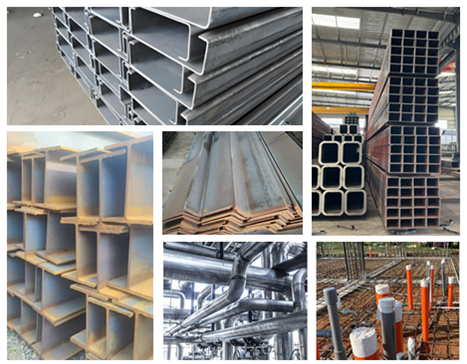

Multi-Material Compatibility
Handle stainless steel, carbon steel, aluminum, and alloys—no blade changes needed, reducing setup time by 30%.
How To Choose The Right Fwincnc Pipe Cutting Machine for My Business?
Pipe Cutting Machine Comparison
| Pipe Diameter Range | Cutting mode | Pipe loading weight | Driving motor | Cost | |
| Intersecting Line Plasma Cutting Machine | 50mm-500mm | Laser | 280kgs | stepper motor | |
| Light Square Round Tube Pipe Laser Cutting Machine | 32mm-400mm | Laser | / | stepper motor | |
| Portable Plasma Pipe Cutting Machine | 300mm | Plasma | / | stepper motor | The cheapest of these five types.
|
| Plasma Pipe Bevel Cutting Machine | 50mm-1600mm | Plasma | / | Japan Panasonic servo | |
| Heavy Duty Metal Tube Laser Cutting Machine | 16mm-500mm | Laser | / | chinese brand1800W*2+1300W+1300W+750W | The most expensive of these five types.
|
| Key Features | Best For | |
| Intersecting Line Plasma Cutting Machine | This laser pipe cutting machine is light model its loading capacity is 280kgs | Large-scale handrail production with thick-walled pipes. |
| Light Square Round Tube Pipe Laser Cutting Machine | The controller system comes with 10 patterns for cutting square tubes; 10 patterns of cutting circular tubes. the end user don’t need get extra software anymore these attached 20 patterns could satisfied with 95% clients. | Complex intersecting cuts (e.g., stair handrails, structural nodes). |
| Portable Plasma Pipe Cutting Machine | Extremely affordable compare to other type of pipe cutting machine, only do the simplest metal pipe cutting | On-site repairs, construction projects requiring mobility, simple pipe pro |
| Plasma Pipe Bevel Cutting Machine | With 5 moving axis, Angle cuts at 60° in the a-axis and 45° in the b-axis.
| Shipbuilding, oil/gas pipelines requiring seamless joints, ideal for welding prep |
| Heavy Duty Metal Tube Laser Cutting Machine | It could cut more different kinds of pipe shapes e.g: Round pipe/Square pipe/Rectangular shape/H shape/C shape/IPE steel | High-mix production (e.g., automotive frames, architectural profiles). |
Recommendations
For Complex and Precise Cuts: The Industrial Intersecting Line Laser Cutting Machine is ideal for intricate designs and high-precision requirements.
For the most cost-effective and portable Needs: The Portable Plasma Pipe Cutting Machine offers portability and flexibility for on-site operations.
For Bevel Cutting Requirements: The Metal Plasma Pipe Bevel Cutting Machine is specialized for precise bevel cuts, essential in welding applications.
For larger diameters or thicker cuts: Heavy-duty fiber laser cutting machines provide fast, accurate cuts in a wide range of materials and profiles.
Your choice should be tailored to your specific production requirements, type of material and required cutting accuracy, as well as your budget, so please feel free to provide more details if you need more help or have specific criteria.
Why choose fwincnc Metal Round Square Pipe Cutting Machine Series
-
Precision Cutting for Varied Thicknesses
Handle 0.5-25mm thick pipes (±0.1mm accuracy), from thin HVAC ducts to heavy structural steel. -
Multi-Material Versatility
Cut stainless steel, aluminum, carbon steel, and alloys seamlessly—no blade swaps, 30% faster setup. -
High-Speed CNC Automation
Achieve 6-12m/min cutting speeds with programmable CNC controls, ideal for bulk industrial orders. -
Global Support & Warranty
24/7 technical assistance, on-site training, and 3-year warranty ensure minimal downtime and maximum ROI.
Metal Pipe Cutting Machine Applications
1. Applicable Materials
Our Metal Pipe Cutting Machines handle stainless steel, galvanized steel, iron, and non-ferrous metals such as aluminum, copper, titanium, and nickel. Suitable for large, medium, and small tubes.
2. Industries & Applications
Widely used in shipbuilding, heavy machinery, petrochemical, power equipment, boiler and machinery manufacturing, aerospace, automotive, and furniture industries.
