When modern metal fabrication facilities aim to boost production output while adhering to strict environmental safety standards, workshop owners frequently ask: what is an enclosed fiber laser cutting machine with exchange table and how does it optimize shop floor efficiency? Traditional open-bed laser cutters lose significant valuable production time during manual material loading and unloading cycles. Furthermore, open processing tables release dust, optical radiation, and laser fumes directly into the plant atmosphere. At Jinan Allwin CNC Machinery Co., Ltd. (Fwincnc), our industrial solution integrates a fully protective safety housing with an automated dual shuttle bed to deliver high-speed, continuous sheet metal processing.
1. Understanding the Enclosed Fiber Laser Cutting Machine with Exchange Table
To evaluate an enclosed fiber laser cutting machine with exchange table, you must look at how its two main structural components work together to enhance productivity and workplace safety.

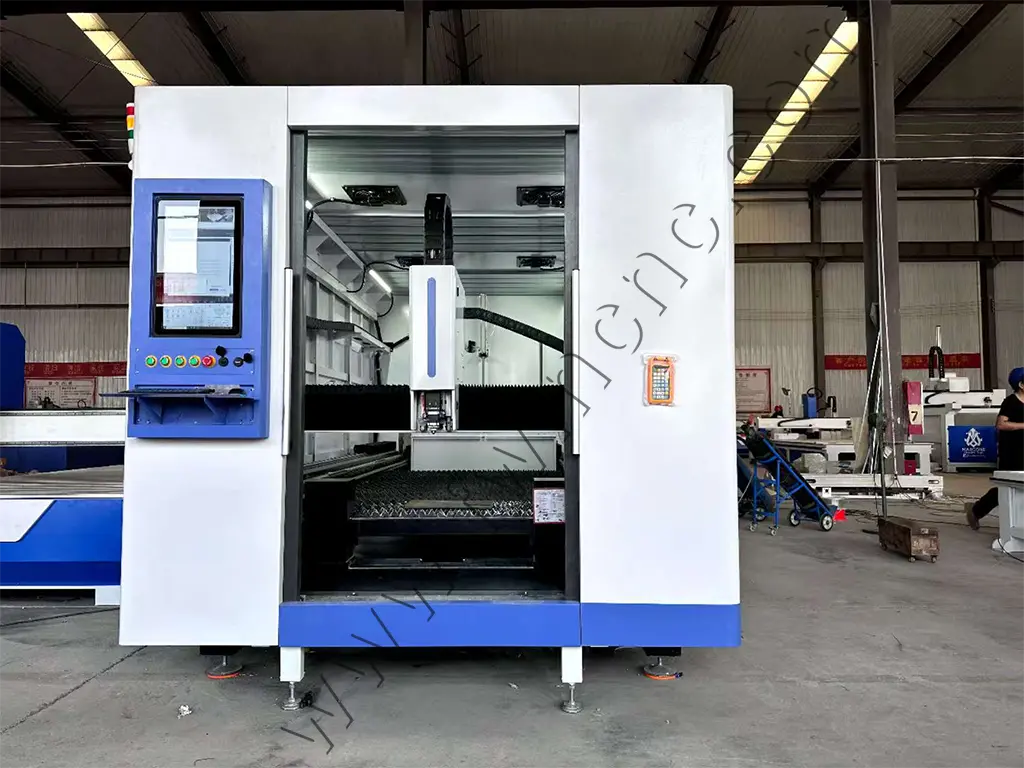

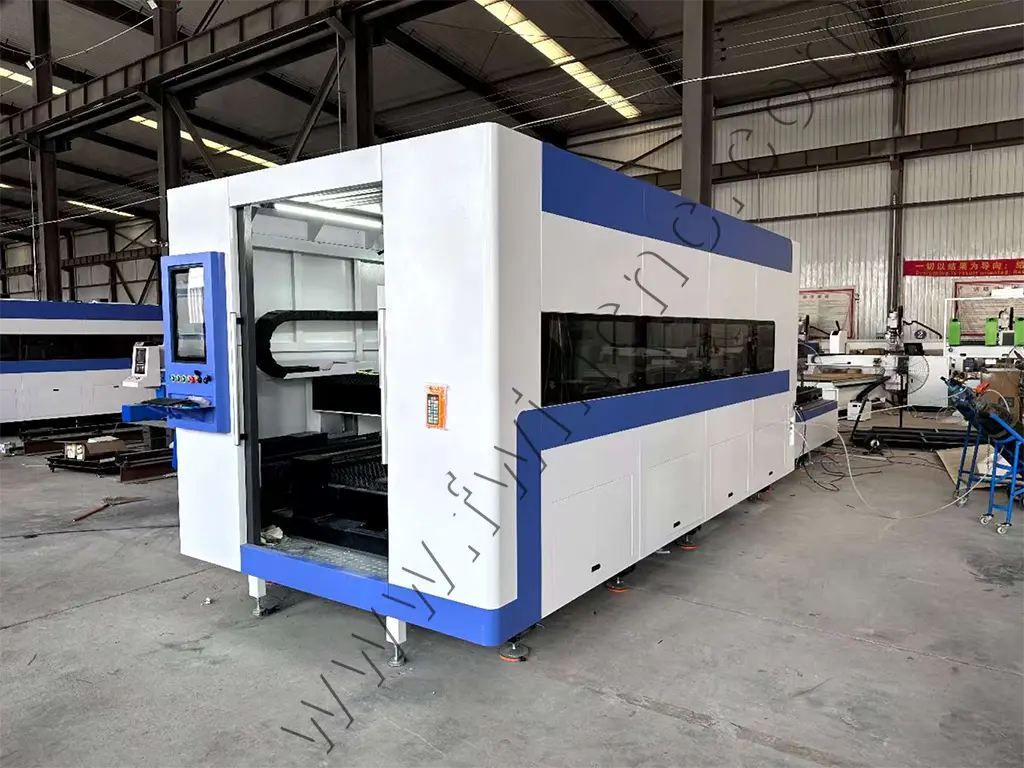

Full Protective Safety Enclosure
The machine frame is enclosed in a heavy-duty protective housing equipped with specialized laser protective glass observation windows (Class 1 laser safety standard). This protective shell retains metal dust, blocks hazardous laser radiation, and works with high-volume ventilation systems to extract cutting fumes safely.
Dual Automated Shuttle Exchange Table
An enclosed fiber laser cutting machine with exchange table features two pallet beds driven by a heavy-duty chain or motor drive mechanism. While the laser head actively cuts sheet metal on Bed A inside the closed safety cabin, operators safely unload finished parts and load a new raw plate on Bed B outside the enclosure. Once cutting completes, the exchange mechanism swaps the two pallets in just 10 to 15 seconds.
2. Production Performance and Technical Specifications
| Performance Feature | Standard Open-Bed Laser Cutter | Enclosed Fiber Laser Cutting Machine with Exchange Table |
| Material Handling Downtime | 3 to 8 minutes per sheet | 10 to 15 seconds automated pallet swap |
| Laser Safety Class | Class 4 (Requires full-room PPE) | Class 1 (Fully enclosed safety protection) |
| Fume Extraction Efficiency | Low (Fumes dissipate into shop air) | High (Concentrated internal downdraft exhaust) |
| Available Laser Power | 1kW to 12kW | 3kW to 30kW plus high-power fiber sources |
| Target Working Formats | 3015 (3m x 1.5m), 4020 (4m x 2m) | 3015, 4020, 6020, and custom large formats |
Utilizing an enclosed fiber laser cutting machine with exchange table doubles actual machine duty cycles by eliminating idle beam time between cutting sequences.
3. Operational Workflow: Executing Continuous Production Cycles
To maintain continuous output on an enclosed fiber laser cutting machine with exchange table, operators follow a streamlined operational sequence:
Place a fresh carbon steel or stainless steel plate onto the external shuttle table bed using an overhead crane or vacuum lifter while the internal table is actively cutting.
Confirm that the protective cabin safety doors are locked and the automated dust collection system is running actively.
Once the internal cutting cycle completes, press the exchange button. The machine swaps the cut sheet bed with the fresh material bed in approximately 15 seconds.
The laser head resumes cutting immediately inside the enclosure, allowing the operator to safely collect finished parts from the outer table.
4. Primary Benefits of an Enclosed Fiber Laser Cutting Machine with Exchange Table
Deploying an enclosed fiber laser cutting machine with exchange table offers three major competitive advantages for expanding metal manufacturing shops:
-
Maximum Beam On-Time: By performing loading and unloading tasks concurrently with active cutting, factories achieve near 100 percent beam utilization.
-
Enhanced Operator Safety and Health: The sealed protective enclosure blocks direct and scattered laser reflections, while high-efficiency fume extraction keeps plant air clean.
-
Clean Part Surfaces: Preventing airborne shop dust from settling on raw steel sheets preserves pristine optical focus and clean assist gas flow across every cut edge.
By choosing an Fwincnc enclosed fiber laser cutting machine with exchange table, manufacturing facilities achieve higher daily tonnage output, strict environmental compliance, and rapid return on capital investment.
