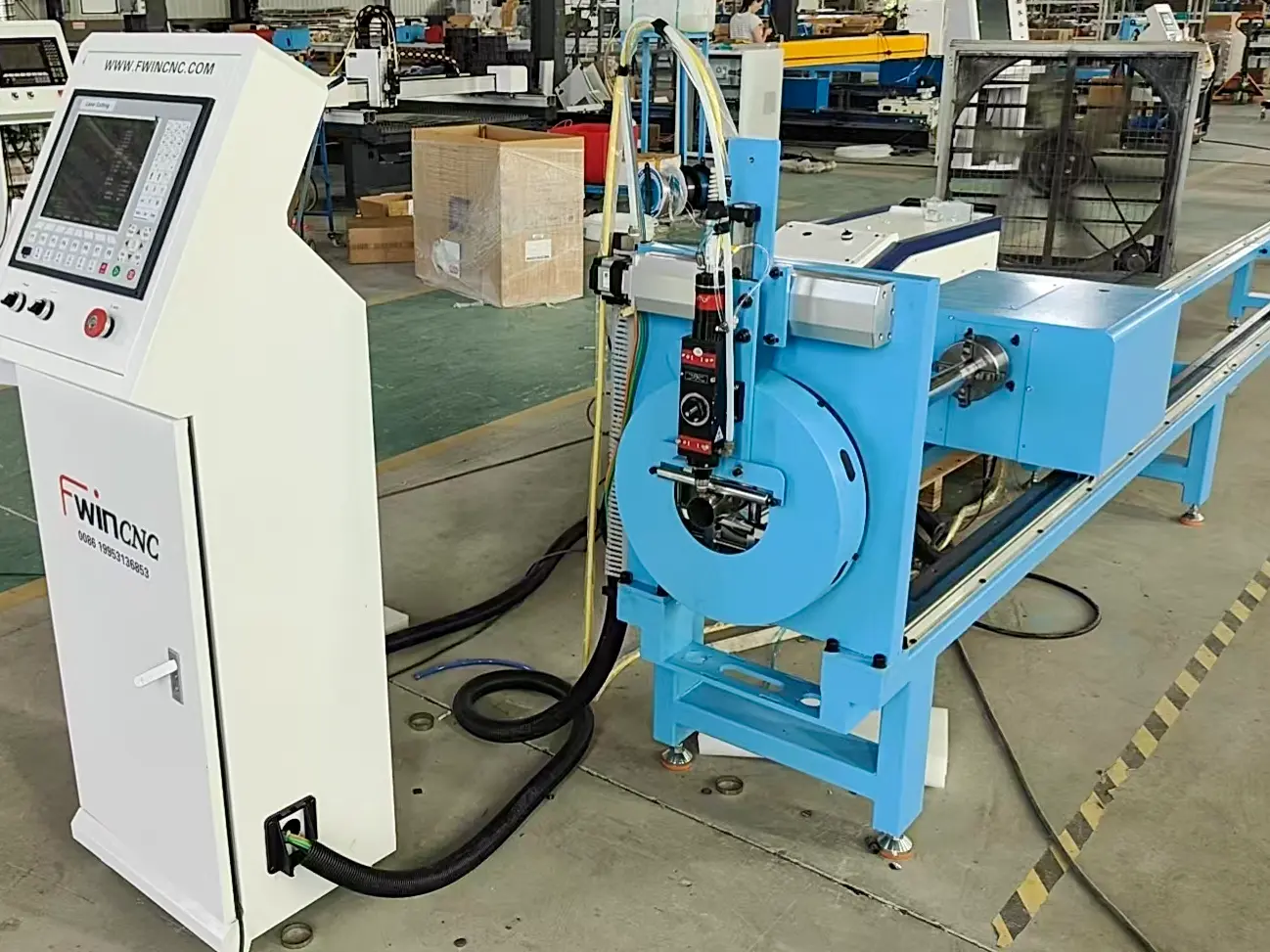

In structural steel fabrication and hardware manufacturing, operators frequently ask: what can a square and round pipe laser cutting machine do to streamline complex shop-floor workflows? Traditional mechanical saws, notchers, and drills require multiple machine setups and extensive manual deburring. By integrating high-power fiber laser optics with an automated dual-chuck rotary positioning system, a Square and Round Pipe Laser Cutting Machine performs clean, high-speed cutting, hole drilling, slotting, miter joining, and complex intersecting saddle profiling across diverse metal tube profiles on a single CNC platform. At Jinan Allwin CNC Machinery Co., Ltd. (Fwincnc), our engineering design focuses on dynamic clamping stability and kinematic precision to minimize wall deformation and eliminate costly secondary grinding.
1. Kinematic Mechanics and Pneumatic Dual-Chuck Architecture
Understanding what a square and round pipe laser cutting machine can do begins with its synchronized dual-chuck bed design. Unlike flat-bed sheet cutters with simple rotary attachments, a dedicated CNC pipe laser controls axial rotation and linear displacement simultaneously.

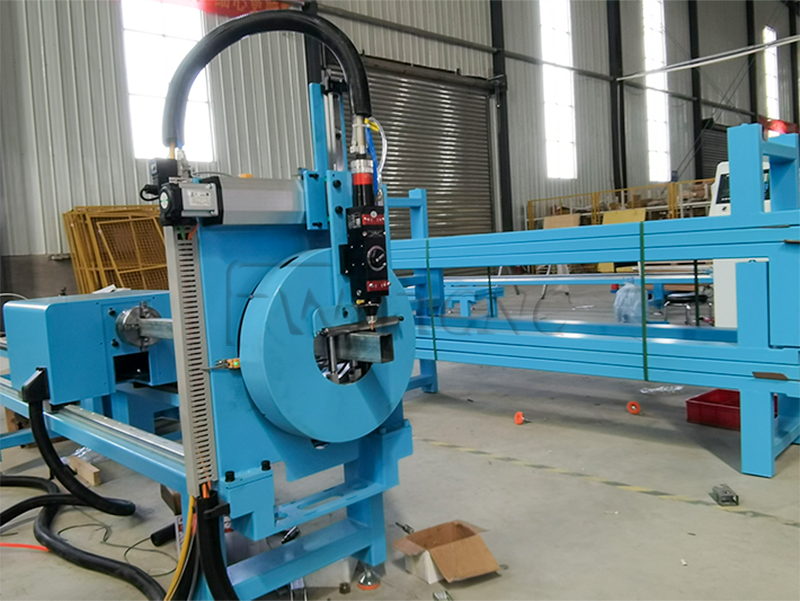

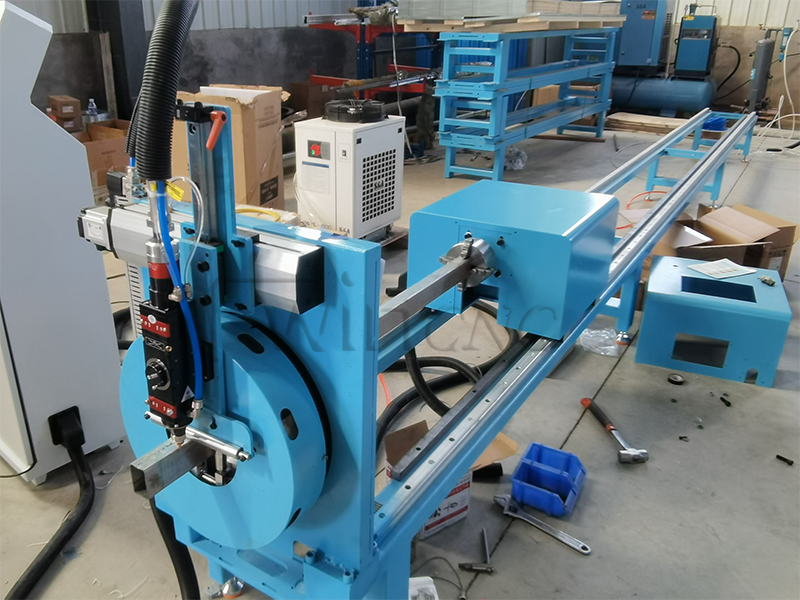

Self-Centering Pneumatic Clamping
The system features front and rear pneumatic self-centering chucks. The pneumatic jaws dynamically balance clamping torque based on profile wall thickness. This prevents structural crushing on thin-walled stainless steel pipes while supplying high gripping force to prevent slippage on heavy carbon steel profiles.
Dynamic Centering and Profile Tracking
Square and rectangular profiles inherently exhibit slight axial twisting and surface bowing along standard 6-meter lengths. A modern Square and Round Pipe Laser Cutting Machine uses real-time optical or capacitive sensing to measure surface deviation along the tube face, automatically adjusting the laser focus depth (Z-axis) to maintain a constant standoff distance.
2. Technical Profile Processing Capability
| Technical Parameter | Standard Processing Range | Primary Production Advantage |
| Compatible Tube Profiles | Round, Square, Rectangular, Oval, Channel/Angle Steel (Option) | Single-workstation processing for mixed structural orders |
| Round Pipe Diameter Range | 6 mm to 120 mm (Standard Options up to 220 mm) | High versatility for furniture, handrails, and industrial piping |
| Square Pipe Dimension Range | 6 mm to 115 mm (Side Length) | Precise 90-degree corner tracking without heat accumulation |
| Standard Pipe Length | 3000 mm / 6000 mm | Supports standard industrial stock lengths with minimal tailing waste |
| Positioning Accuracy | +/- 0.05 mm | High-precision hole alignment for tight weld assembly fit-ups |
3. Operational Sequence: Setting Up Mixed Profile Jobs
To achieve continuous processing output on a Square and Round Pipe Laser Cutting Machine, operators follow this standard setup sequence:
Load 3D CAD models (STEP or IGES format) into the 3D pipe nesting software. The system automatically extracts vector toolpaths for miter joints, intersecting saddle cuts, and bolt holes.
Set the pneumatic pressure regulators based on wall thickness. Select the appropriate jaw pads for square or round profiles to ensure full surface contact without scratching polished tubing.
Place the 6-meter pipe into the rear chuck pass-through. The front and rear pneumatic chucks close, executing an automatic optical edge-finding routine to establish coordinate zero.
Initiate the cutting program. The fiber laser head maintains precise capacitive height tracking while the dual chucks rotate and feed the pipe through the cutting zone.
4. Key Industrial Applications and ROI Impact
Asking what a square and round pipe laser cutting machine can do reveals substantial operational savings across several key manufacturing sectors:
-
Fitness Equipment Manufacturing: Cuts round and square tubing, punches adjustment pin holes, and executes curved slotting in a single automated step.
-
Building Construction & Handrails: Executes precise miter joints and saddle cuts on stair handrails and structural trusses, eliminating post-cut grinding before welding.
-
Automotive & Exhaust Fabrication: Processes stainless steel round exhaust pipes and frame tubes with zero burrs and low Heat-Affected Zones (HAZ).
By pairing high-purity assist gases with Fwincnc pneumatic clamping systems, fabricators achieve high precision, reduced scrap rates, and streamlined assembly workflows across all tube metal profiles.
